• Trunnion Mounted Ball Valve, ASTM A105N, 20 Inch, 150 LB
Trunnion Mounted Ball Valve, ASTM A105N, 20 Inch, 150 LB

Key Specifications / Features

Model No.: Hits: 40

This valve features a trunnion-mounted, full port ball with tungsten carbide coated metal seats, flexible graphite seal gasket, and Inconel X750 spring. It is gear operated and has ASTM A193 Grade B7M bolts with ASTM A194 Grade 2HM nuts. The valve body is made of ASTM A105N and the ball is 316SS. It has ends per ASME B16.5 and ASME B16.10 long, and is designed to API 6D/ISO 14313 standards. Additionally, it has been fire tested to API-607 and is NACE MR0175 compliant.
Request a quote

Detail Information

VALVE, BALL: 20", 150 LB, RF, SPLIT BODY, TRUNNION MOUNTED, FULL PORT, GEAR OPERATED, ENDS PER ASME B16.5, ASME B16.10 LONG, NACE MR0175, API 6D/ISO 14313 DESIGN, FIRE TESTED TO API-607, BODY: ASTM A105N, BALL: 316SS, STEM: ASTM A479
GRADE XM-19, TUNGSTEN CARBIDE COATED METAL SEATS, FLEXIBLE GRAPHITE SEAL GASKET, INCONEL X750 SPRING, MANUFACTURERS STANDARD VENT/DRAIN, ASTM A193 GRADE B7M BOLTS WITH ASTM A194 GRADE 2HM NUTS

Product Item: Trunnion Mounted Ball Valve
Size: 20 Inch
Pressure: Class 150 LB
Design: API 6D, ISO 14313
Material: ASTM A105N
Ball: SS 316
Stem: ASTM A479 Grade XM-19

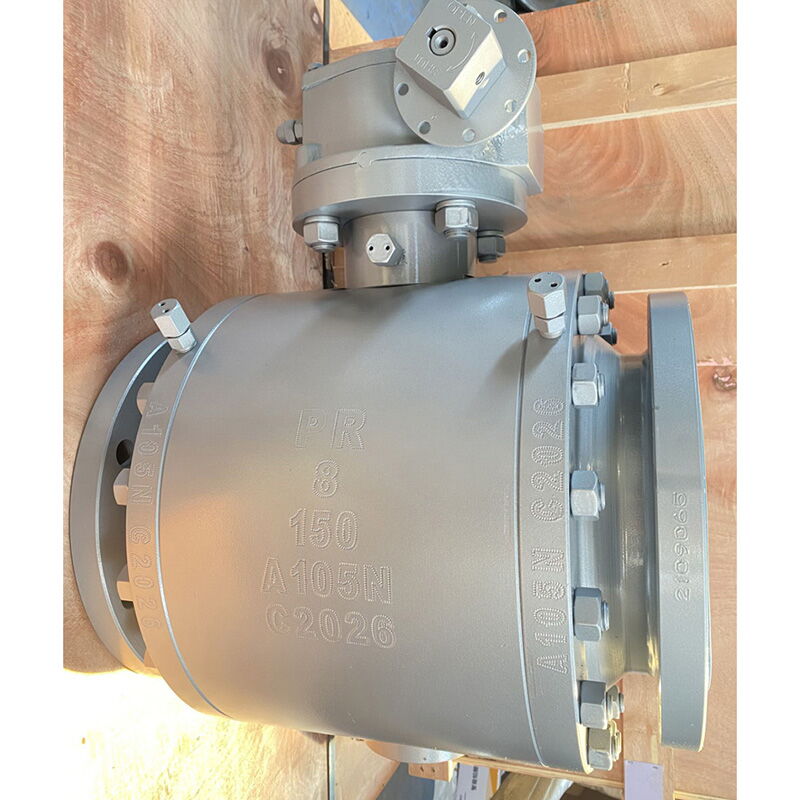

Trunnion Mounted Ball Valve
