Pneumatic Actuator On/Off Ball Valve, WCB, 12 Inch, 300 LB

Discover our high-quality ON/OFF ball valve equipped with an efficient actuator, solenoid valve, and regulator for seamless control and durability.

Tags:

• Pneumatic actuated Ball Valve
• ASTM A216 WCB Ball Valve
• 12 Inch Ball Valve
• Class 300 LB Ball Valve
• DN300 Ball Valve
• PN50 Ball Valve
• ASME B16.5 Ball Valve
• RF Ball Valve

ON/OFF BALL VALVE WITH ACTUATOR, SOLENOID VALVE & REGULATOR

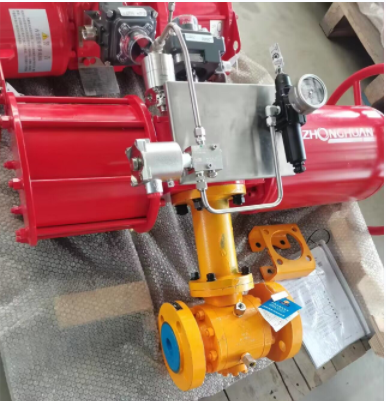

PNEUMATIC ACTUATOR ON/OFF BALL VALVE

(EEXD CABLE GLAND, SHROUD, AND HANGER TAG PLATE) FULL BORE, METAL SEAT ACC. TO ASME B16.10, SIZE & END CONNECTION: 12 IN CLASS 300 RF ASME B16.5, BODY MATERIAL: ASTM A216GR WCB, BALL: 316SS, COATING & STEM: HARD CHROME & XM-19, H BACK SEALS: GRAPHITE SPRING: INCOLOY 825, SEAT: 316SS & COATING: COBALT-BASED HARD FACING, BODY GASKET: PTFE, PACING: PTFE V-RING, THRUST BEARING: FILLED PTFE, ACTUATOR: PNEUMATIC, SINGLE-ACTING CYLINDER, SPRING-RETURN, PROTECTION CLASS IP66, FUNCTION: SPRING-TO-CLOSE MATERIAL OF SEALS AND BEARING

Product Item: Pneumatic On/Off Ball Valve with Actuator, Solenoid Valve & Regulator
Material: ASTM A216 GR WCB
Ball: SS 316
Coating & Stem: Hard Chrome & XM-19
H Back Seals:
Graphite Sring: Incoloy 825
Seat: SS 316
Size: 12 Inch, DN300
Pressure: Class 300 LB, PN50
Standard: ASME B16.5
End Connection: RF
Seat: Metal
Coating: Copneumatic, Single-acting Cylinder, Spring-return, Protection Class IP66
Function: Spring-to-close Material of Seals and Bearing
Balt-based hard facing
Body Gasket: PTFE
Pacing: PTFE V-ring
Thrust Bearing: Filled PTFE
Actuator: Pneumatic
