Single Door Wafer Check Valve, ASTM A536 65-45-12, 2-12 IN

Single Door Wafer Check Valve, ASTM A536 65-45-12, 2-12 IN
Single Door Wafer Check Valve, ASTM A536 65-45-12, 2-12 IN

Key Specifications / Features

The Single Door Wafer Check Valve features a body made from ASTM A536 Grade 65-45-12 for superior strength and durability. The AISI 304 disc provides excellent corrosion resistance, and the valve is available in sizes from 2 to 12 inches (DN50-DN300) with a pressure rating of 300 PSI. The valve is fusion bonded epoxy coated, offering enhanced protection against corrosion and wear.
Request a quote

Detail Information

Product Item: Single Door Wafer Check Valve
Body Material: ASTM A536 Grade 65-45-12
Disc Material: AISI 304
Size Range: 2-12 Inch, DN50-DN300
Working Pressure: 300 PSI (200 PSI and 250 PSI available upon request)
Temperature Range: 0°C to 80°C
Connection Ends: ASME B16.1 Class 125 LB, ASME B16.5 Class 150 LB
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

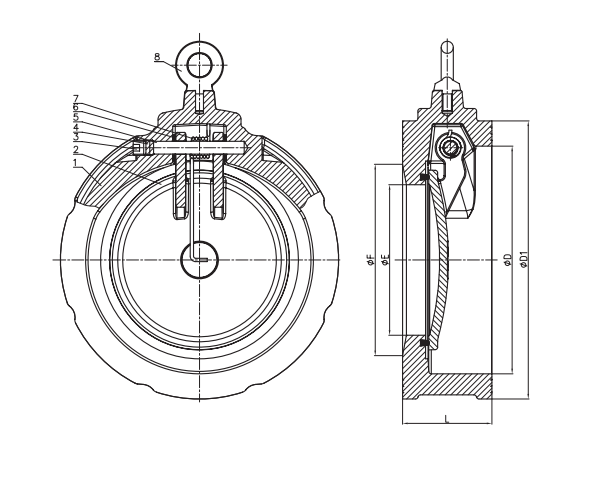

Single Door Wafer Check Valve Design Drawing

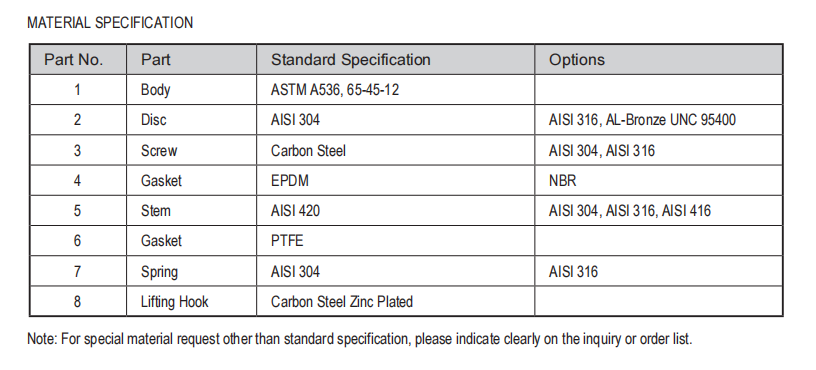

Single Door Wafer Check Valve Material Specification

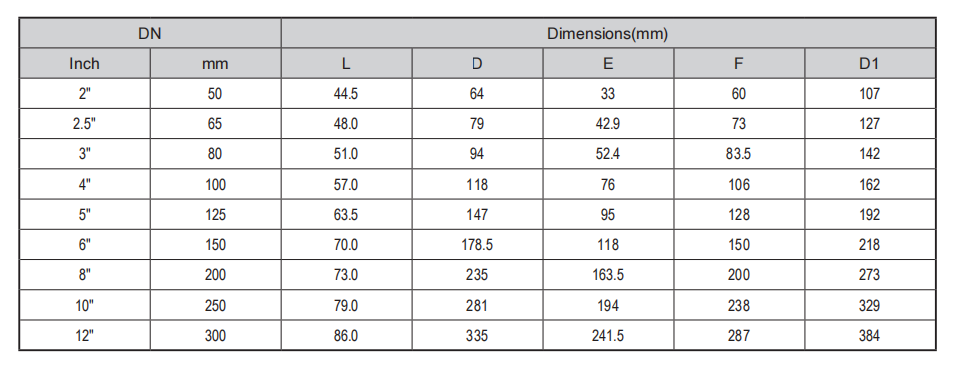

Single Door Wafer Check Valve Dimensions
