Grooved Double Door Check Valve, ASTM A536 65-45-12, 8-14 IN

Grooved Double Door Check Valve, ASTM A536 65-45-12, 8-14 IN
Grooved Double Door Check Valve, ASTM A536 65-45-12, 8-14 IN

Key Specifications / Features

The Grooved Double Door Check Valve features a robust ASTM A536 Grade 65-45-12 body, ensuring high strength and durability. Available in sizes ranging from 8 to 14 inches (DN200-DN350), with a pressure rating of 300 PSI, it is designed with grooves per AWWA C606 standards for easy installation. The valve is fusion bonded epoxy coated for enhanced corrosion resistance, making it ideal for reliable backflow prevention in water and wastewater systems.
Request a quote

Detail Information

Product Item: Grooved Double Door Check Valve
Body Material: ASTM A536 Grade 65-45-12
Disc Material: AISI 304
Size Range: 8-14 Inch, DN200-DN350
Working Pressure: 300 PSI (200 PSI and 250 PSI available upon request)
Temperature Range: 0°C to 80°C
Connection Ends: Groove to AWWA C606
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

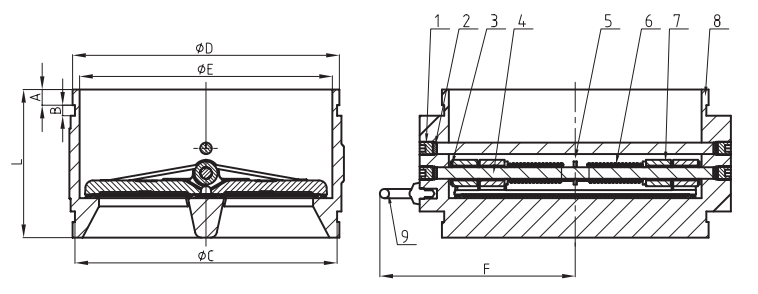

Grooved Double Door Check Valve Design Drawing

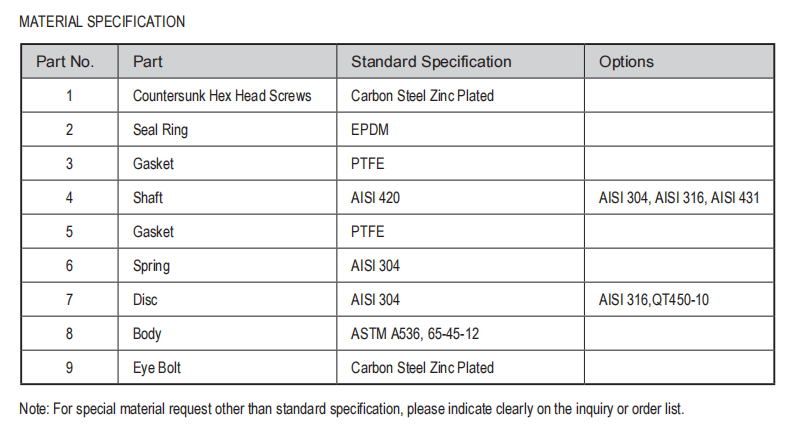

Grooved Double Door Check Valve Material Specification

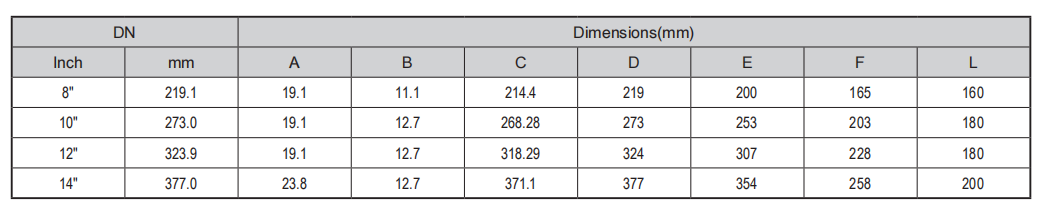

Grooved Double Door Check Valve Dimensions
