Centrifugal pumps are essential fluid transport devices widely used across various industries. Known for their unique working principles and high-efficiency capabilities, centrifugal pumps have become indispensable equipment in modern industrial production. These pumps use a high-speed rotating impeller to convert the energy of liquids into kinetic energy, which is further transformed into pressure energy, enabling the transport of fluids. Whether in water treatment, chemical production, oil drilling, or any other application requiring fluid movement, centrifugal pumps exhibit unmatched performance and advantages. This article will explore the working principle, structural composition, classification methods, advantages and disadvantages, and main operating parameters of centrifugal pumps to provide a deeper understanding of their applications and performance.

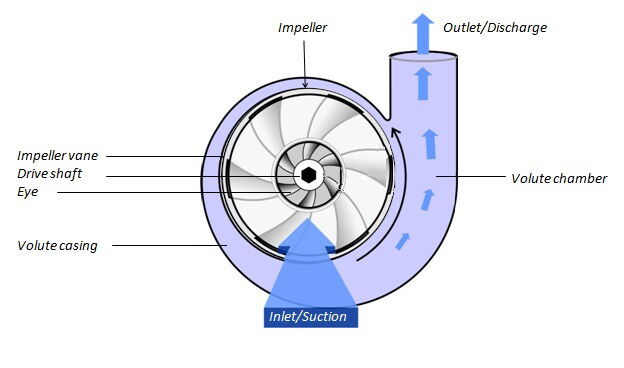

Working Principle of Centrifugal Pumps
The working principle of a centrifugal pump is based on the conversion of kinetic energy into pressure energy through the centrifugal force generated by a high-speed rotating impeller. Below is a detailed description of the operational process.
Pump Casing Fill: Before starting, the pump casing and inlet piping need to be filled with the fluid to prevent cavitation.
Impeller Rotation: After the pump starts, the pump shaft drives the impeller to rotate at high speed, rapidly spinning the liquid within the impeller's blades.
Centrifugal Force: The rotating liquid is subjected to centrifugal force, which causes it to fly outwards from the center of the impeller. As the liquid is expelled, a vacuum is created at the center of the impeller.
Fluid Intake and Energy Transfer: The vacuum at the impeller's center continually draws in fluid while imparting energy to the fluid through the blades, enabling continuous flow and discharge.
Flow Velocity and Pressure Variation: Once the liquid is expelled, the flow velocity gradually slows within the volute (spiral) casing. As the flow path widens, the liquid's kinetic energy is converted into pressure energy.
High-Pressure Discharge: Finally, the fluid exits the pump through the discharge port at a higher static pressure, completing the transport process.

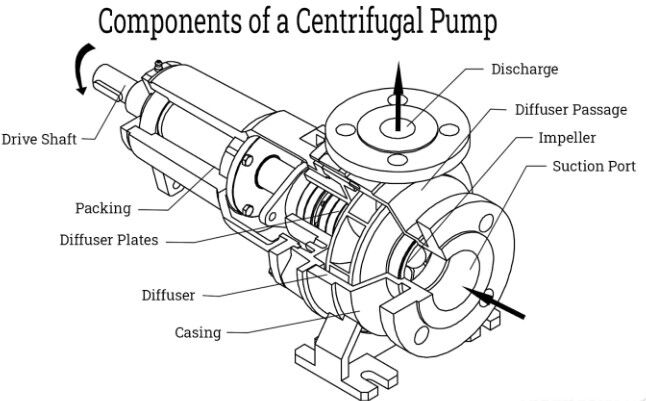

Structure of a Centrifugal Pump
Centrifugal pumps come in many types, and although their structures may differ, the main components are quite similar. The key parts of a centrifugal pump include the impeller, pump shaft, pump casing, pump base, packing box (shaft seal device), leakage-reducing ring, and bearing housing.
1. Impeller
The impeller is the core working part of the centrifugal pump. It converts energy into the kinetic energy of the liquid, enabling the liquid to be transported. The impeller typically consists of the wheel, blades, and cover plates. The cover plates are divided into front and rear plates. The front plate is located at the impeller inlet side, while the rear plate is on the other side. When the pump starts, the pump shaft drives the impeller to rotate at high speed, forcing the liquid between the blades to rotate. Due to centrifugal force, the liquid moves radially outward from the center of the impeller, gaining energy, which increases static pressure and flow speed. After passing through the impeller, the liquid enters the pump casing. As the flow path widens, the liquid slows down, and kinetic energy is converted into static pressure energy, ultimately flowing out of the discharge pipeline.
2. Pump Shaft
The main function of the pump shaft is to transfer power and support the impeller, ensuring its normal operation during work. One end of the shaft is connected to the motor shaft via a coupling, while the other end supports the impeller's rotation. The shaft is equipped with bearings, axial seals, and other components. Common materials for pump shafts include carbon steel and stainless steel. The impeller is connected to the shaft using a key, but since this connection only transfers torque and does not fix the axial position of the impeller, a shaft sleeve and locking nut are used to secure the impeller's axial position. The shaft sleeve protects the pump shaft and reduces wear by converting friction from the packing to friction between the packing and the shaft sleeve.
3. Bearings
Bearings in a centrifugal pump support the rotor's weight and withstand forces during operation. Centrifugal pumps typically use rolling bearings, which are lubricated with grease or oil. The bearing housing and bearing hole fit are usually selected according to national standards.
4. Packing Box (Shaft Seal Device)
At the point where the pump shaft exits the casing, high-pressure water inside the casing may leak outward. To prevent this, a packing box is commonly used as a shaft seal device. The packing box consists of the shaft seal sleeve, packing, water seal pipe, water seal ring, and packing gland. It prevents liquid leakage and ensures the pump operates efficiently.
5. Volute (Casing)
The volute is a spiral flow path in a centrifugal pump. After the liquid exits the impeller, its flow speed gradually decreases and converts into static pressure energy. The expanding flow path of the volute helps increase the static pressure of the fluid and is widely used in centrifugal pump designs. The material of the volute is usually cast iron, while corrosion-resistant pumps may use stainless steel or plastic materials. For multi-stage pumps, the volute is typically used only in the first and last stages, with guide vanes employed in the middle stages to reduce uneven radial pressure on the rotor.
6. Guide Vane
A guide vane is a fixed disk with forward and backward guide blades. It smoothly directs the liquid to the next stage impeller. As the liquid exits the impeller, its speed gradually decreases, and kinetic energy is converted into static pressure energy, improving efficiency. This design is suitable for staged multi-stage centrifugal pumps. The radial gap between the guide vane and impeller needs to be precisely controlled to avoid too large a gap, which would reduce efficiency, or too small a gap, which would cause vibration and noise.
7. Seal Ring
To reduce internal leakage and protect the pump casing, a replaceable seal ring is installed at the pump casing near the guide vane and impeller inlet. The seal ring helps maintain the pump's high efficiency by reducing the radial gap. When the seal ring wears out, the gap increases, reducing discharge and efficiency. Therefore, regular inspection and replacement of the seal ring are necessary.
Classification of Centrifugal Pumps
Centrifugal pumps are available in numerous types, with several classification methods based on different characteristics. Below are some common classification methods.
1. By Impeller Suction Method
Single-Suction Centrifugal Pump: The impeller draws liquid from one side, commonly used in smaller flow applications.
Double-Suction Centrifugal Pump: The impeller draws liquid from both sides, providing higher flow capacity, suitable for large flow applications.
2. By Number of Impellers
Single-Stage Centrifugal Pump: Features a single impeller, suitable for low-pressure and small-flow applications.
Multi-Stage Centrifugal Pump: Consists of multiple impellers, suitable for high-pressure and larger flow applications, capable of providing higher head.
3. By Impeller Structure
Open Impeller Pump: Lacks cover plates on both sides, suitable for conveying liquids with large solid particles.
Semi-Open Impeller Pump: Only has a rear cover plate, suitable for liquids with suspended solids or prone to sedimentation.
Closed Impeller Pump: Both sides have cover plates, suitable for clean liquids and offering high efficiency.
4. By Shaft Position
Horizontal Centrifugal Pump: The pump shaft is placed horizontally, commonly used in general industrial settings due to good stability and ease of installation.
Vertical Centrifugal Pump: The pump shaft is placed vertically, suitable for confined spaces or applications where the pump needs to be located below ground level.
Advantages and Disadvantages of Centrifugal Pumps
As a common fluid transportation device, centrifugal pumps are widely used across various industries due to their unique working principles and structural characteristics. While they offer numerous advantages in meeting different operational requirements, they also have certain limitations. This section will analyze the advantages and disadvantages of centrifugal pumps in detail to better understand their range of applications and limitations.
1. Advantages of Centrifugal Pumps
High Speed: Centrifugal pumps typically operate at speeds between 700 and 3500 RPM, allowing them to be directly connected to electric motors or turbines. Compared to reciprocating pumps, centrifugal pumps are lighter, occupy less space, and run more smoothly, making them suitable for a variety of applications.
Strong Operational Reliability: Centrifugal pumps do not have suction or discharge valves, resulting in a simpler structure and higher reliability with lower maintenance costs.
Easy Flow Adjustment: The flow rate in centrifugal pumps can be easily adjusted by modifying the valve opening, offering a wide range of control and ease of operation.
Uniform Flow and Low Noise: During operation, centrifugal pumps deliver stable, uniform flow with minimal noise, making them ideal for environments where quiet operation is required.
Ability to Handle Liquids with Impurities: Centrifugal pumps can handle liquids with certain impurities, which makes them widely applicable in industrial and processing sectors.
2. Disadvantages of Centrifugal Pumps
No Self-Priming: Centrifugal pumps lack self-priming capability, meaning that the suction chamber and impeller must be filled with liquid before starting, or they will not function properly.
Prone to Cavitation: Without self-priming, the entry of even a small amount of air into the suction chamber can cause cavitation, damaging the pump's efficiency and lifespan.
Unsuitable for High Head and Low Flow Applications: Centrifugal pumps are not ideal for applications with high heads and low flows, where other pump types (such as reciprocating pumps) may be more appropriate.
Key Operating Parameters of Centrifugal Pumps
The performance of centrifugal pumps is influenced by several factors, with key parameters determining the pump's efficiency and range of applications. Below are the main parameters to better understand the performance characteristics of centrifugal pumps.
1. Flow Rate
This refers to the volume of liquid discharged by the pump per unit of time, typically measured by an outlet flow meter. Flow can be classified into volume flow and mass flow.
Volume Flow: The volume of liquid discharged per unit of time, commonly expressed as Q, and measured in units such as L/s (liters per second), m³/s (cubic meters per second), or m³/h (cubic meters per hour).
2. Head
The head represents the energy increase of the liquid from the pump inlet to the pump outlet. It is denoted by H, typically measured in meters of liquid column. The head is not only used to elevate the liquid's height but also to overcome flow resistance in the transport process and to increase static pressure and velocity.
3. Speed
The speed refers to the number of rotations of the pump shaft per minute, represented by the symbol 'n', and measured in r/min. The speed directly influences the flow rate, head, and power of the centrifugal pump. The operational speed should generally not exceed 4% of the manufacturer's maximum specified value.
4. Power
Power is the work done per unit of time, expressed in watts (W) or kilowatts (kW). Centrifugal pump power is divided into effective power, shaft power, and required power. Effective power represents the actual work done by the pump, while shaft power is the total power delivered to the pump shaft.
5. Efficiency
Efficiency is a technical-economic indicator that measures the pump's performance by the ratio of effective power to shaft power. Due to inherent losses, the efficiency of centrifugal pumps cannot reach 100%. Losses include:
Volumetric Loss: Due to leakage in the pump, the actual discharge volume is smaller than the intake volume.
Hydraulic Loss (Flow Loss): Losses due to friction and impact resistance.
Mechanical Loss: Losses caused by friction between the impeller, shaft, and bearings.
Installation and Commissioning of Centrifugal Pumps
The installation of centrifugal pumps is crucial to ensure their efficient and stable operation. Proper installation can enhance pump performance, extend service life, and reduce the likelihood of failure. Below are the key factors to consider during centrifugal pump installation.
1. Base and Pump Configuration
Base Selection: The base for centrifugal pumps should be selected according to the type of pump and its operating conditions. It should be made of heavy-duty, stable steel profiles and plates to ensure adequate rigidity and stability. The base's torsional stiffness, rigidity, and flatness are vital to the pump's normal operation.
Installation Requirements: The base should be sufficiently heavy, generally 3 to 5 times the weight of the pump unit, to ensure stability and vibration absorption. The base should also be level, with horizontal tolerance controlled within 0.0002 m/m (0.2 mm/m), to prevent instability due to unevenness.
2. Leveling and Alignment of the Pump
Leveling: The pump base should be accurately leveled, ensuring the pump and motor share the same horizontal plane. The alignment error should remain within 0.0002 m/m (0.2 mm/m). For vertical pumps, the base level tolerance typically ranges from 0.04 to 0.06 mm/m.
Alignment: Proper alignment of the pump and drive motor is essential to avoid excessive wear and vibration, which can reduce equipment lifespan. Repeated checks should be conducted during installation to ensure perfect alignment.
3. Pipeline Connections
Suction and Discharge Pipes: The pump's pipeline should be as simple and straight as possible. The suction line should be designed to minimize bends and losses to ensure smooth flow into the pump. The discharge line should ensure fluid can flow out smoothly and prevent pump overload.
Small Rigid Pipelines: To prevent damage from vibration, small rigid pipelines should be used and appropriately supported to prevent excessive vibration or stress. Thick-walled and well-supported pipelines are essential to prevent corrosion and accidental rupture.
4. Pressure Gauge Installation
Discharge Pressure Gauge: A discharge pressure gauge should be installed at the pump outlet to allow operators to monitor pump performance in real-time and troubleshoot any faults. Accurate discharge pressure is essential for assessing the pump's operational condition.
Suction Pressure Gauge: While suction pressure gauges help monitor the pump's operational state, they are not standard for all pumps. Larger, important pumps may include a suction pressure gauge to help accurately monitor intake conditions.
5. Anchor Bolts and Foundation
Anchor Bolt Selection: Anchor bolts must be strong and long enough to secure the pump base to the foundation. The bolt's length-to-diameter ratio should be between 11 to 16, and during installation, a sleeve should be used to prevent grout from entering the bolt hole.
Grouting: Epoxy grouting should be used between the foundation and the base to stabilize the anchor bolts and prevent relative displacement caused by thermal expansion differences.
6. Post-Startup Checks
Initial Checks: After startup, it is important to check the pump's head, flow rate, vibration, and noise levels. Other key parameters like bearing temperature and operating temperature should also be closely monitored. If vibration and noise are high but hydraulic operations are normal, installation, alignment, or piping issues may be the cause.
Gas Issues: When gas (e.g., air) is trapped inside the pump, it can cause reduced flow and abnormal vibrations and noise. If noise is abnormal and there is no mechanical fault, trapped gas may be the culprit. In this case, the Net Positive Suction Head (NPSH) margin should be checked, and intake and discharge pressures monitored.
Conclusion
In summary, centrifugal pumps are widely used across industries due to their high efficiency and reliability in fluid transportation. While they have limitations such as the lack of self-priming and susceptibility to cavitation, these issues can typically be addressed with proper design and operation. As technology advances, centrifugal pumps will continue to expand their application range, excelling in areas requiring high pressure and large flow rates. Understanding the principles, structural features, and operational precautions of centrifugal pumps is essential to improve equipment efficiency, extend service life, and optimize production and engineering outcomes.
