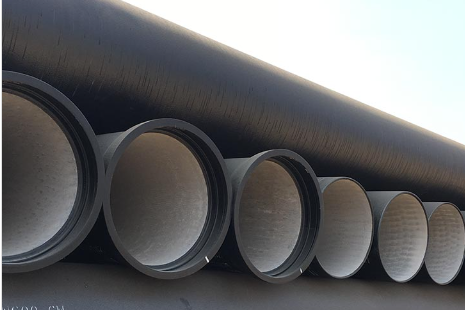

K9 Ductile Cast Iron Joint Pipe, EN 545, EN 598, ISO 2531, DN80-DN2600

Discover a wide range of ductile iron joint pipes at our plant, including T-type, K-type, and Self-Restrained varieties compliant with ISO 2531, EN 545, EN 598, and GOST 5525 standards. Available in sizes ranging from DN80 to DN2600, with WT Class options of K9, K8, C40, C30, and C25, suitable for pressure ratings of 10-50 Bar. Our pipes feature zinc and bitumen coating for enhanced durability.

Tags:

• Cast Iron Pipes
• EN 545 Pipe
• ISO 2531 Pipe
• Class K9 Pipe
• Class K8 Pipe
• GOST 5525 Pipe
• Joint Pipe
• Cast Iron Joint Pipe
• Self-Restrained Joint Pipe
• K-type Joint Pipe
• T-type Joint Pipe

Product Item: Pipe
Type:
T-type Joint Pipe (Push-on)
K-type Joint Pipe
Self-Restrained Joint Pipes

Standard: ISO 2531, EN 545, EN 598, GOST 5525
Material: Ductile Iron, Ductile Cast Iron
Size: DN80-2600mm
Wall Thickness Class: K9, K8, C40, C30, C25
Pressure: 10 - 50 Bar
Length: 6m for bulk vessels and 5.7m for containers
Usage: Water supply project, drainage, sewage, irrigation, water pipeline
Lining: Portland Cement Mortar Lining
External coating: Zinc + Bitumen
Packing: DN100-DN300 in bundles; DN350-DN2600 in bulk
Rubber ring: EPDM, SBR or NBR
