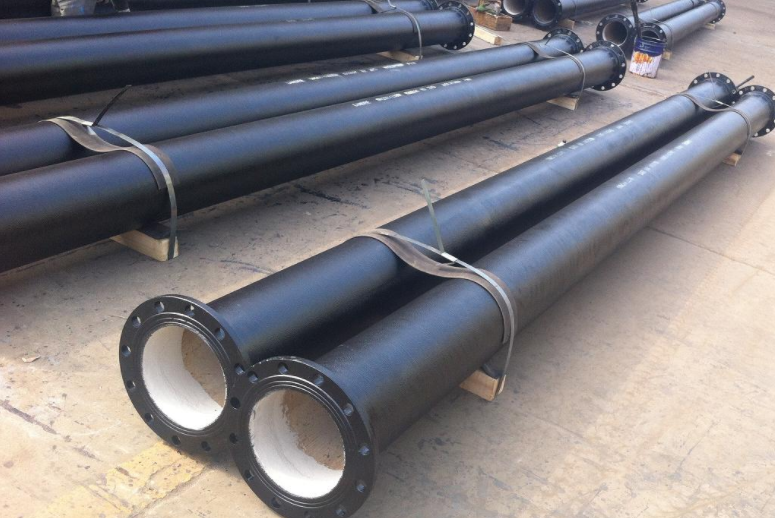

Ductile Iron Flanged Pipe, EN 545, 598, PN10, PN16, PN25, PN40

Leading Flanged Ductile Iron Pipe Manufacturer compliant with ISO 2531, EN 545, and EN 598 standards. Our pipes are available in PN10, PN16, PN25, and PN40 specifications, featuring robust FBE coating and epoxy painting. Secured with high-quality carbon steel bolts and nuts for durability and reliability. Elevate your infrastructure with our premium-quality ductile iron pipes.

Tags:

• EN 545 Pipe
• BS EN 598 Pipe
• PN10 Pipe
• PN16 Pipe
• PN25 Pipe
• PN40 Pipe

Ductile Iron Flanged Pipes

Standard: ISO 2531, EN 545, EN 598
Pressure: PN10, PN16, PN25, PN40
Body material: Ductile iron

Coating:

a). Inside cement mortal lining as per ISO 4179, outside zinc primer black bitumen as per ISO 8179;

b). Inside and outside with FBE (fusion bonded epoxy) coating or Epoxy painting;

c). Inside and outside with Epoxy painting;

d). Inside and outside wih zinc primer black bitumen.

Gaskets are SBR, NBR or EPDM;

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS 304/SS 316

Package: wooden cases and protection layer
