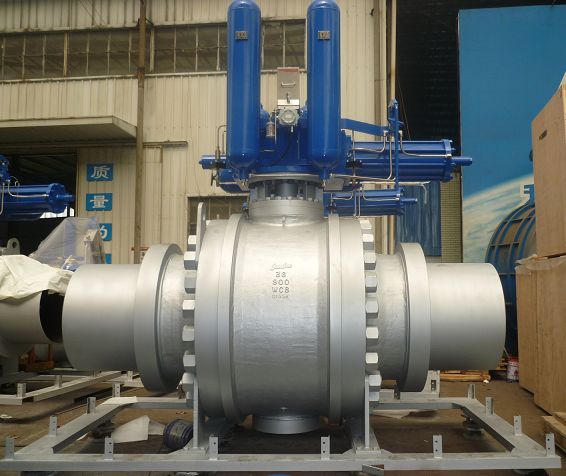

Gas Over Oil Actuator Ball Valve, WCB, 36IN, CL900, API 6D

Gas Over Oil Actuator Ball Valve Manufacturer: API 6D Trunnion Mounted Ball Valves with Gas Over Oil Actuator, 36 Inch, 900 LB, Full Bore, BW Ends.

Tags:

• ASTM A216 WCB Ball Valve
• Class 900 LB Ball Valve
• Full Bore Ball Valve
• Trunnion Mounted Ball Valve
• API 6D Ball Valve
• Butt Welded Ball Valve
• BW Ball Valve
• 36 Inch Ball Valve

Gas Over Oil Actuator API 6D trunnion mounted ball valves, full bore, weld ends, c/w 600mm pups X60 12.7mm wt.

Model: 36 Inch, 900 LB
Type: Ball Valve, Full Bore, Trunnion Mounted
Body Material: ASTM A216 WCB
Ball Materials: Stainless Steel SS 316L
Stem Materials: Stainless Steel SS 316L
Seat Materials: NYLON
Standard: API 6D
Ends: butt welded, Welded Ends C/W 600mm pups API 5L X60 12.7mm WT
Class Rating: 900 LB
Size: 36 Inch
Operator: Gas Over Oil Actuator with remote telemetry
