Top Entry Trunnion Mounted Ball Valve, 2-60 IN, 150-2500 LB

We Provide Top Entry Trunnion Mounted Ball Valves, Gas Over Oil Actuator Top Entry Trunnion Ball Valves, API 6D, API 608, ISO 17292, 2-60 Inch, 150-2500 LB.

Tags:

• Top Entry Ball Valve
• Trunnion Mounted Ball Valve
• 2 Inch Ball Valve
• 60 Inch Ball Valve
• API 608 Ball Valve
• ISO 17292 Ball Valve
• API 6D Ball Valve
• RF Ball Valve
• RTJ Ball Valve
• BW Ball Valve

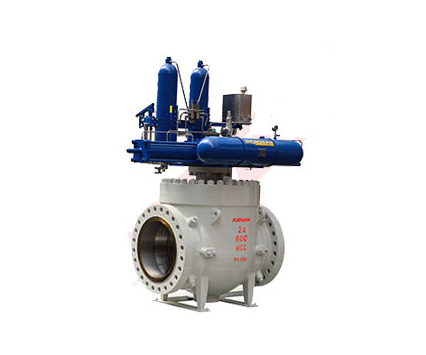

GAS OVER OIL ACTUATOR Top Entry Trunnion Mounted Ball Valve Design standard: API 6D, API 608, ISO 17292

Product range

1. Pressure range: CLASS 150-2500 LB
2. Nominal diameter: NPS 2-60 Inch
3. Body material: Carbon steel, Stainless steel, duplex stainless steel, Alloy steel, Nickel alloy
4. Design standard: API 6D, API 608, ISO 17292
5. End connection: RF, RTJ, BW
6. Working temperature: -29℃-350℃
7. Mode of operation: Lever, Gearbox, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device

Product Features

1. Flow resistance is a small, fire-safe, antistatic design
2. Piston seat, DBB design
3. Bidirectional seals, no limitation on the flow direction
4. Tope entry design, easy for online maintenance
5. When the valve is in the fully open position, seat surfaces are outside the flow stream that is always in full contact with the gate that can protect seat surfaces, and is suitable for pigging pipeline
6. Spring-loaded packing can be chosen
7. Low emission packing can be chosen according to ISO 15848 requirement
8. Stem extended design can be chosen
9. Soft seats and metal-to-metal seats can be chosen
