API 6D Fully Welded Ball Valve, ISO 14313, 2-60 Inch, 150-2500 LB

Explore our comprehensive range of fully welded ball valves, meeting industry standards such as API 6D and ISO 14313. Available in sizes ranging from 2 to 60 inches (DN50-DN1500) and suitable for various pressure ratings (150-2500 LB, PN10-PN420). Our valves come with options for end connections, including RF, RTJ, and BW. Choose from a variety of operation methods, including wrench, worm gear, electric, and pneumatic. Rest assured, our valves are fire-safe, ensuring reliability and performance in critical conditions.

Tags:

• API 6D Ball Valve
• 2 Inch Ball Valve
• 60 Inch Ball Valve
• DN50 Ball Valve
• Class 150 LB Ball Valve
• Class 2500 LB Ball Valve
• RF Ball Valve
• RTJ Ball Valve
• BW Ball Valve
• ISO 14313 Ball Valve

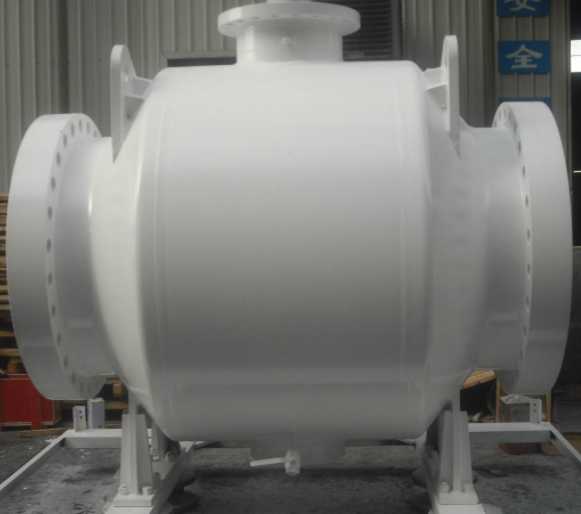

Product Item: Fully Welded Ball Valve

Design Features

1. The ball valve is designed by ISO 14313, API 6D;
2. Simple structure with good tightness and small torque;
3. With a fully-welded valve body, full bore and the minimum flow resistance (zero actually);
4. Emergency sealant injection;
5. Cavity pressure self relief;
6. Low emission packing;
7. Fire-safe, anti-static and anti-blowout stem design;
8. Valve seat function DBB, DIB-1, DIB-2;
9. Optional extended bonnet;
10. Optional overlay stainless steel on body to seat surface and/or gasket container surface;
11. It is to be used for underground installation without corrosion of interior parts, therefore, it is the best application for petroleum and natural gas line systems;
12. Service life up to 30 years.

Product Range

Body material: low-temperature carbon steel, carbon steel
Nominal diameter: 2 - 60 Inch (DN50-DN1500)
Pressure range: Class 150-2500 LB (PN10-PN420)
End connection: RF, RTJ, BW
Working temperature: -46℃ - +200℃
Operation: Wrench, worm gear, electric, pneumatic, gas over oil actuator and an electro-hydraulic actuator
