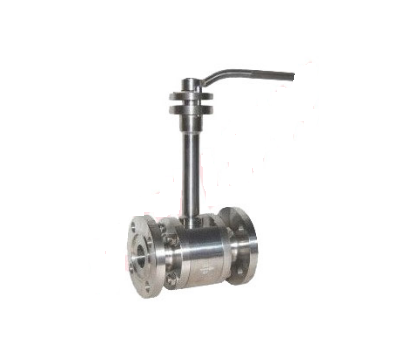

Cryogenic ball valve
Main features: Low-temperature ball valve is designed with an extended bonnet, which can protect the stem packing and stuffing box area to avoid the effect of the low temperature that causes the stem packing to lose its elasticity. An extended area is also convenient for insulation protection. Valves are suitable for Ethylene, LNG plants, air separation plant, Petrochemical gas separation plant, PSA oxygen plants, etc.
Design standard: API 6D, API 608, ISO 17292, BS 6364
Product range
1. Pressure range: Class 150-900 LB
2. Nominal diameter: NPS 1/2-24 Inch
3. Body material: Stainless steel, Nickel alloy
4. End connection: RF, RTJ, BW
5. Minimum working temperature: -196 ℃
6. Mode of operation: Lever, Gearbox, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device
Product features
1. Flow resistance is small, fire safe, antistatic design
2. Floating type and trunnion mounted type can be chosen according to the requirement
3. Soft seat design with good sealing performance
4. When the valve is in a fully open position, seat surfaces are outside the flow stream that is always in full contact with the gate that can protect seat surfaces
5. Multi seal on the stem with good sealing performance
