ASTM A53 Grade B Tank Nipple, MSS SP-95, 1/2-2 IN, Threaded
ASTM A53 Grade B Tank Nipple, MSS SP-95, 1/2-2 IN, Threaded

Key Specifications / Features

The ASTM A53 Grade B Pipe Nipple, available from a reliable supplier, is crafted from high-quality carbon steel and designed according to MSS SP-95 standards. This tank-type pipe nipple features a size range of 1/2 to 2 inches and is equipped with ASME B1.20.1 threads, ensuring strong, leak-proof connections. It is ideal for various industrial applications, offering durability and precision for secure piping installations.

Detail Information

Product Item: Carbon Steel Tank Nipple
Standard: MSS SP-95
Material: ASTM A53 Grade B
Size Range: 1/2-2 Inch
Threads: ASME B1.20.1

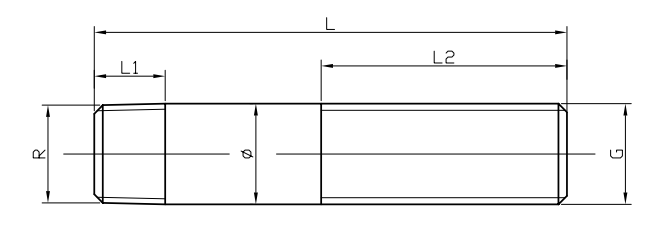

MSS SP-95 Tank Nipple Design Drawing

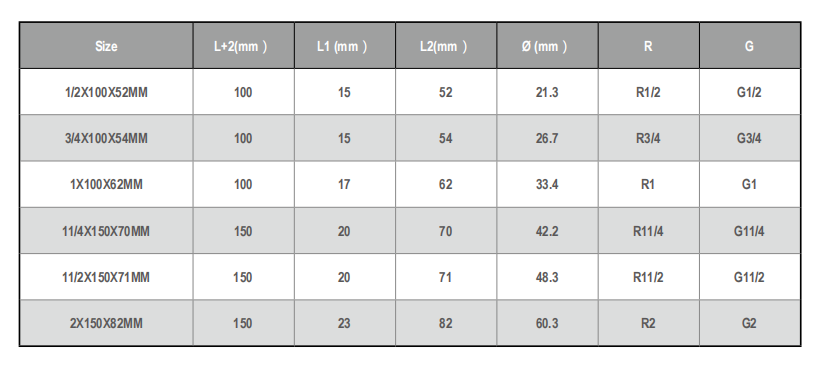

MSS SP-95 Tank Nipple Dimensions
