Carbon Steel Dielectric Nipple, PP Liner, ASTM A53 E, 300 PSI

Key Specifications / Features

The Carbon Steel Dielectric Nipple, made to ASTM A53 Type E and ASTM A733 standards, features a 300 PSI pressure rating. It is zinc electroplated with a polypropylene plastic liner for corrosion resistance and electrical insulation, and complies with ASME B1.20.1 threading standards.

Model No.: LD-20241209-OPF-01
Hits: 6
Categories: Other Fittings
Tags: Dielectric Pipe Nipple, ASTM A53 Type E Pipe Nipple, Carbon Steel Pipe Nipple

Request a quote

Detail Information

Product Item: Carbon Steel Dielectric Nipple
Material Specifications:
1. Body: Carbon Steel Pipe to ASTM A53 Type E, Zinc Electroplated
2. Liner: Polypropylene (PP) Plastic

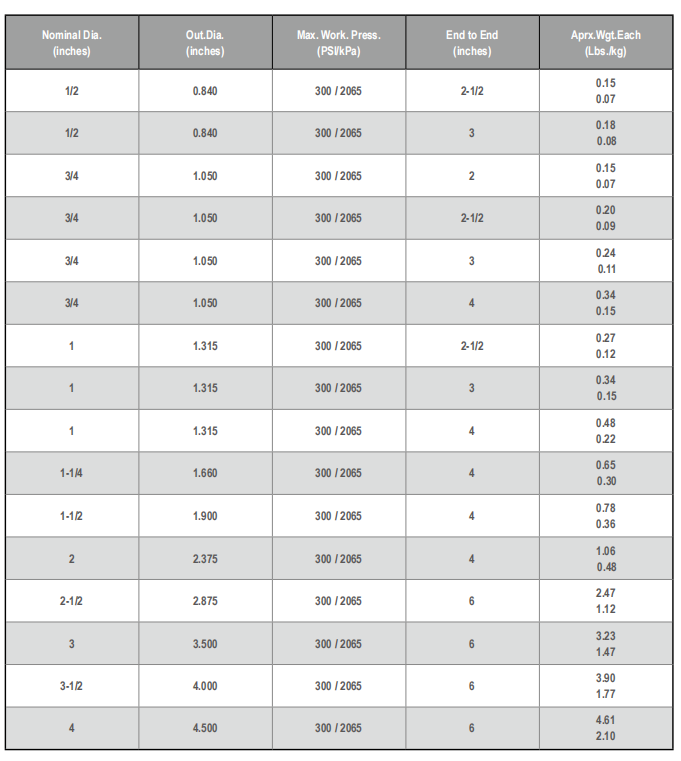

Dimension: ASTM A733

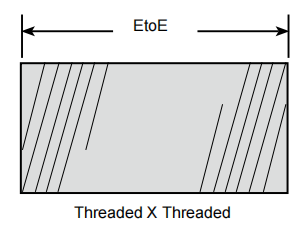

Thread: ASME B1.20.1
Working Pressure: 300 PSI
Temperature Range: 32°F to 230°F

Description

For cool or heat water supply, good corrosion resistance in water.
Plastic-inedsteel nipples act as an insulator to prevent destrudive electrolytic corrosion betweendissimilar metals.
Crosslinked polyethylene (PEX) plastic, and polyethylene (PE) plastic availablewhen ask.
It meets NSF /ANSI 372 lead free requirement.
