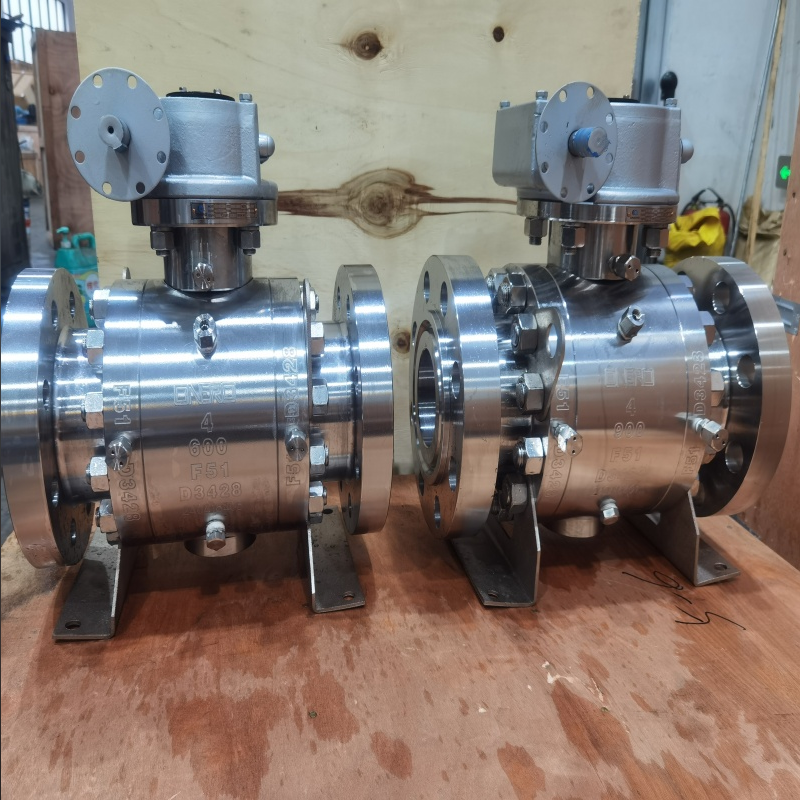

• ASTM A182 F51 Ball Valve, API 6D, Duplex Steel, 4 IN, 600 LB
ASTM A182 F51 Ball Valve, API 6D, Duplex Steel, 4 IN, 600 LB

Key Specifications / Features

Model No.: LD-20240820-BV-01 Hits: 9

The Duplex Stainless Steel Trunnion Ball Valve, compliant with API 6D and made from ASTM A182 F51, offers exceptional corrosion resistance and durability. It meets NACE MR0175 and ISO 15156 standards for sour service, and is a 4-inch (DN100), full bore valve rated for Class 600 LB (PN100) pressure, ensuring reliable performance in high-pressure environments.
Request a quote

Detail Information


Product Item: Duplex Stainless Steel Ball Valve
Type: API 6D Forged Duplex Stainless Steel Ball Valve, Full Bore, Trunnion Type
Standard: API 6D
Body and Ball Material: ASTM A182 F51
Seat Material: Peek
Size: 4 Inch, DN100
Class Rate: Class 600 LB, PN100
Ends: RF Flanged
Temperature: -20°C to +200°C
NACE Requirement: MR0175, ISO 15156

ASTM A182 F51 Ball Valve
