ASTM A182 F51 Trunnion Ball Valve, API 6D, 10 IN, 1500 LB

ASTM A182 F51 Trunnion Ball Valve, API 6D, 10 IN, 1500 LB
ASTM A182 F51 Trunnion Ball Valve, API 6D, 10 IN, 1500 LB

Key Specifications / Features

DSS ASTM A182 F51 Trunnion Ball Valve Supplier: Forged Duplex Stainless Steel ASTM A182 F51 Trunnion Mounted Ball Valves, API 6D, 10 Inch, 1500 LB, RF Ends.
Request a quote

Detail Information

Forged Steel A182 F51 Ball Valve, API 6D, Full Bore, Trunnion Mounted Ball, PEEK SEAT, Flange Ends, 1500 LB, 10 Inch

Name: API 6D Ball Valve
Size: 10 Inch
Class: 1500 LB
Constuction: Full Bore
Connection Ends: Flanged RF
Material: DSS ASTM A182 F51
Standard: API 6D

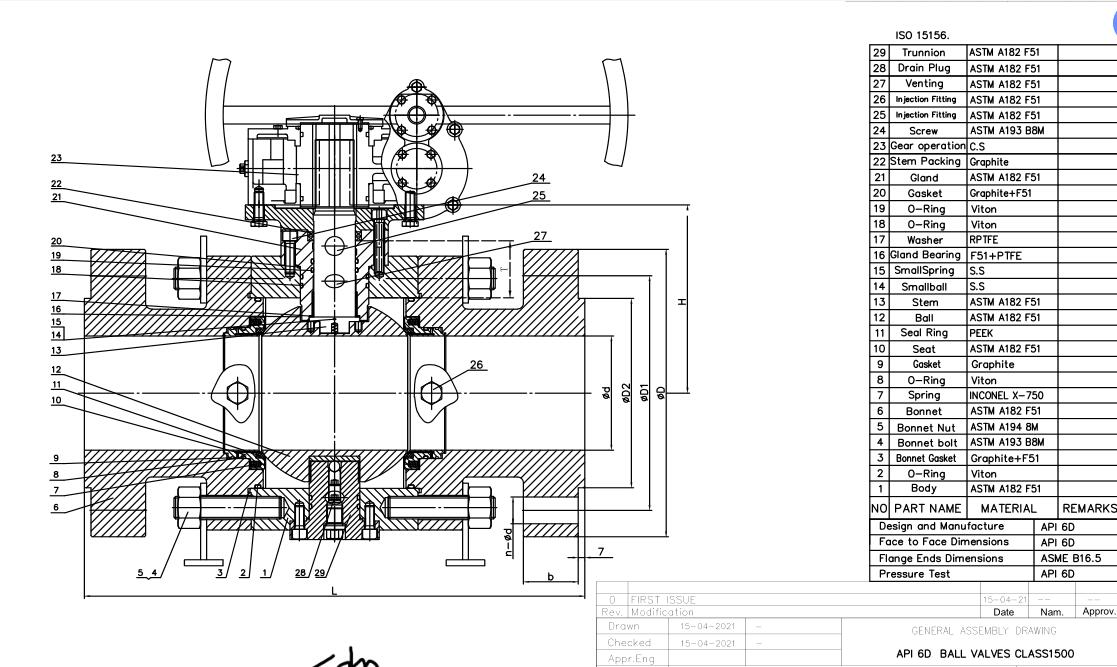

Technical drawing:
Technical Drawing
