Two Way Pillar Fire Hydrant, DI, 1.6 MPa, with Landing Valve

Key Specifications / Features

Model No.: LD-20240911-FFE-01 Hits: 10

The Two Way Pillar Fire Hydrant features a robust ductile iron body designed for durability and high performance. With a pressure rating of 1.6 MPa (16 bar) and a 4-inch flange, it ensures reliable water flow and compatibility with various systems. It includes a BS 336 brass landing valve and 2-1/2 inch couplings for efficient water discharge and easy integration.
Request a quote

Detail Information


Product Item: Two Way Pillar Fire Hydrant
Installation: Equipped with a 4 Inch Flange and 2-1/2 Inch Standard Couplings
1) Bottom Flange: 4 Inch
2) Outlet: BS 336 Landing Valve × 2-1/2 Inch
3) Material: DI (Ductile Iron) Body & Brass Landing Valve
4) Rated Working Pressure: 1.6 MPa/16 bar/235 psi
5) Height: 830mm
6) Weight: 37±1kg
7) Color: Red
Use: Fire Hydrant for Fire Fighting

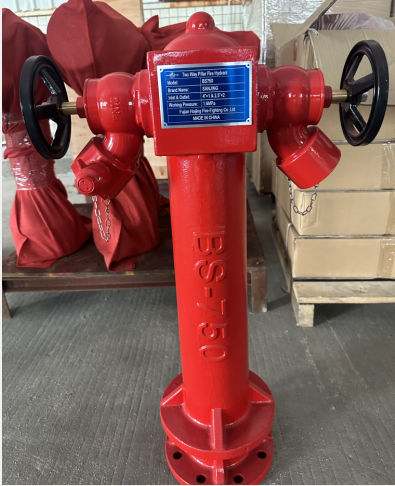

Two Way Pillar Fire Hydrant
