ASME B16.5 Weld Neck Flange

The carbon steel weld neck flange, manufactured in China to ASME B16.5 standards, is made from ASTM A105 material. It has a size of 16 inches (DN400), a Class 150 LB rating, and a PN20 pressure rating. Featuring a raised face and a wall thickness of SCH STD, this flange provides a robust and reliable connection.

This ASTM B564 UNS N06625 weld neck flange is manufactured in accordance with ASME B16.5 standards, ensuring high quality and reliability. With a size of 4 inches and a pressure rating of Class 900 LB, it features a wall thickness of 6.02 mm for enhanced durability. The flange is equipped with RTJ (Ring Type Joint) ends, making it suitable for high-pressure applications.

This ASME B16.5 welded neck flange is made from low temperature carbon steel ASTM A350 LF2, ensuring exceptional strength and performance in challenging conditions. With a 12-inch diameter and a Class 1500 LB rating, it is designed for high-pressure applications. The flange features ring type joint end connections for a secure seal and reliable installation.

The Carbon Steel Weld Neck Flange, manufactured as per ASME B16.5 and ASTM A105 standards, is a 4-inch (DN100) flange with a Class 150 LB and PN20 pressure rating. It features a standard wall thickness (SCH STD) and a raised face design, ensuring compatibility and durability in various piping systems.

The ASME B16.5 Weld Neck Flange, manufactured from Carbon Steel ASTM A105, is a 30-inch Class 150 LB flange designed for high-pressure applications. With a DN750 and PN20 rating, it features a raised face and a wall thickness of SCH STD. This flange is ideal for ensuring strong, leak-resistant connections in pipelines, offering reliability and durability for a range of industrial applications.

Looking for an ASTM A105 Welded Neck Flange Manufacturer in China? Get high-quality 24 Inch (600 MM), CL300, ASME B16.5, SCH XS, Carbon Steel, Raised Face flanges with ISO 10474-3.1B certification.

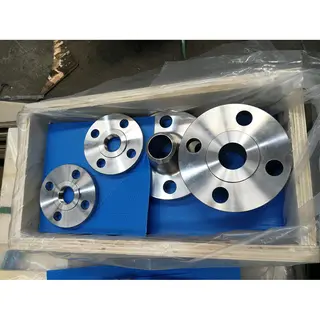

The stainless steel weld neck flanges, manufactured to ASME B16.5 standards, are made from ASTM A182 F316 and F316L materials. They are 1-1/2 inches in size (DN40), with a Class 300 LB rating and PN50 pressure rating. Featuring a wall thickness of SCH 80S and a raised face design, these flanges ensure robust performance and a secure, reliable connection in various piping systems.

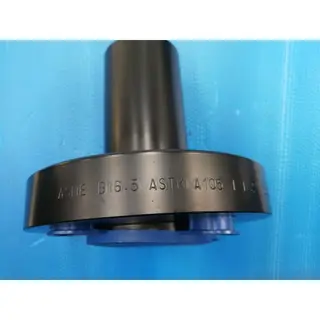

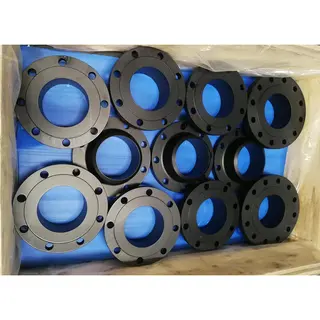

Get high-quality Carbon Steel ASTM A105 Welding Neck Flanges from ASME B16.5 standards provider. These flanges are 4 inches in size, with a 100 mm diameter, rated at Class 300 LB, and designed for SCH 80 piping systems. Featuring a Raised Face and Serrated Spiral Finish, they adhere to ISO 10474-3.1B standards.
