An orifice flange is a device used to measure flow in pipeline systems. It is commonly used with an orifice flow meter. The orifice flange is widely used to monitor and control the flow of liquids, gases, and steam. It is known for its high accuracy, ease of operation, and flexibility in installation. The orifice flange plays an important role in many industries, including oil, natural gas, chemical, power, and water management. The device not only measures flow rates accurately but also adapts well to various operating conditions.
Structure of Orifice Flange

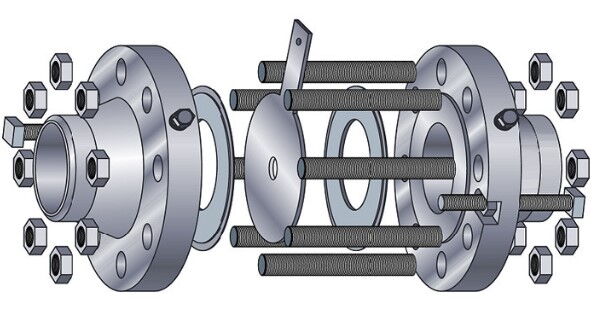

The orifice flange has a simple design that is highly efficient. It consists mainly of flanges, an orifice plate, sealing gaskets, bolts, nuts, jacking screws, and plugs. The flanges are usually disk-shaped and have a raised face or a ring-type joint flange. The orifice plate is a special plate with a hole. The size and shape of the hole can be adjusted to control the required flow rate. As fluid passes through the orifice plate, the flow speed changes because of the resistance caused by the orifice. This creates a pressure difference that is used to calculate the flow rate.
Each flange has two pressure sampling holes. These holes measure pressure changes inside the pipeline. When the fluid passes through the orifice plate, the orifice restricts the flow, causing changes in speed and pressure. The pressure difference is measured by a differential pressure sensor. The flow rate is then calculated using formulas that take into account the orifice size, fluid density, and flow characteristics.
Jacking screws are used to make installing and removing the orifice plate easier. The screws help separate the flanges, making maintenance and inspections more convenient.
Working Principle of Orifice Flange
The orifice flange operates based on the principle of differential pressure flow measurement. When fluid passes through the orifice, the size of the orifice limits the flow speed. This causes a pressure difference. The pressure difference is proportional to the flow rate. By measuring the pressure difference, and considering the orifice size, fluid density, and flow characteristics, the flow rate can be calculated accurately. Pressure is measured through pressure sampling holes installed on the flanges, typically before and after the orifice plate.
The fluid speed increases before the orifice plate and decreases after it. This creates a clear pressure difference across the orifice. According to Bernoulli's principle and fluid dynamics, the pressure difference reflects the change in flow rate. With the right calculations, the actual flow rate can be determined.
Design Features and Advantages Orifice Flange
The design of the orifice flange has several key features and advantages.
Simple Structure: The orifice flange has a straightforward design with fewer components, making it easy to install. This simplicity makes it adaptable to various pipeline systems.
High Measurement Accuracy: The orifice flange provides precise flow measurement through differential pressure. It can measure the flow of liquids, gases, and steam with minimal error.
Strong Adaptability: The orifice flange is suitable for a wide range of fluids, including corrosive liquids and high-temperature gases. It can use different materials for the orifice plate and flanges to meet various operational conditions.
Easy Installation and Maintenance: The design of the jacking screws makes the disassembly and replacement of the orifice plate easier. Operators can quickly inspect and maintain the device, reducing downtime and ensuring long-term stability.
High Reliability and Durability: The orifice flange is made from corrosion-resistant and heat-resistant materials. It can withstand extreme conditions and has a long service life.
Orifice Flange Applications
The orifice flange is used in many industries, particularly where accurate flow measurement is required. Some of its main applications are as follows.
Oil and Gas Industry: The orifice flange is used to measure the flow of oil and natural gas in pipelines. It ensures the safe and efficient transport of fluids. The orifice flange provides accurate flow measurements for fluids with different pressures and flow rates, supporting production with important data.
Chemical Industry: Accurate fluid measurement is critical in the chemical industry. The orifice flange is used in flow control during chemical reactions. It helps monitor fluid flow in reactors and pipelines, ensuring stable production processes.
Power Industry: The orifice flange is used in thermal power plants to measure steam and hot water flow. It is essential for thermal energy measurement, helping to ensure efficient system operation and prevent resource waste.
Water Resources and Environmental Engineering: The orifice flange is used to monitor water flow in water resource management projects. It helps optimize water distribution and scheduling. In environmental monitoring, the orifice flange provides accurate flow data to support pollution control and environmental protection.
Food and Pharmaceutical Industries: In the food and pharmaceutical industries, the orifice flange measures liquid and gas flow. It ensures the precise control of fluids during production, meeting strict hygiene and quality standards.
Conclusion
The orifice flange is a highly effective and precise flow measurement tool. It plays an important role in many industries. The device is simple in structure, offers high accuracy, and adapts well to various conditions. The orifice flange is one of the most important devices for flow measurement. It provides reliable flow data, which is crucial for supporting production processes. As technology advances, the use of orifice flanges will expand. Their performance and functionality will continue to improve, offering even more accurate solutions for flow control and optimization in modern industrial production.
