• Monolithic Isolation Joint, ASTM A106 Grade B, ASME B31.8
Monolithic Isolation Joint, ASTM A106 Grade B, ASME B31.8

Key Specifications / Features

Model No.: Hits: 9

Monolithic Isolation Joints (MIJ) for pipelines, featuring ASTM A106 Gr. B and ASTM A105 forging, are designed for optimal performance. With ASME B31.8 compliance and a fluoro-rubber gasket, these 20-inch (OD 508 mm) joints can withstand pressures up to 19.75 Bar, ensuring durability and reliability in various applications.
Request a quote

Detail Information

Product Item: Monolithic Isolation Joints (MIJ) for Pipelines
Pup Body Material: ASTM A106 Gr. B
Forging Piece Material: ASTM A105
Seal Gasket Material: Fluoro-Rubber (Viton 70)
Size: 20 inch
Outside Diameter: 508 mm
Design Pressure: 19.75 Bar
Design Standard: ASME B31.8
Insulation Gasket: ASTM D709 G11
External coating: EPOXY
Service/Medium: Oil

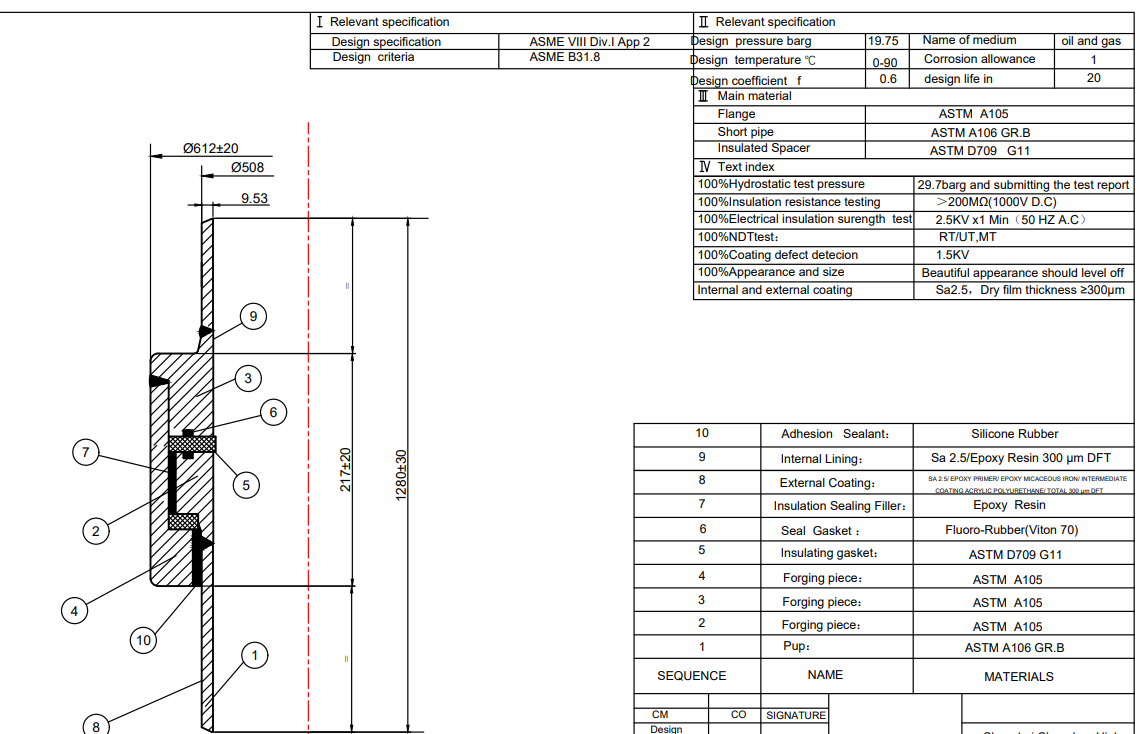

tech data
