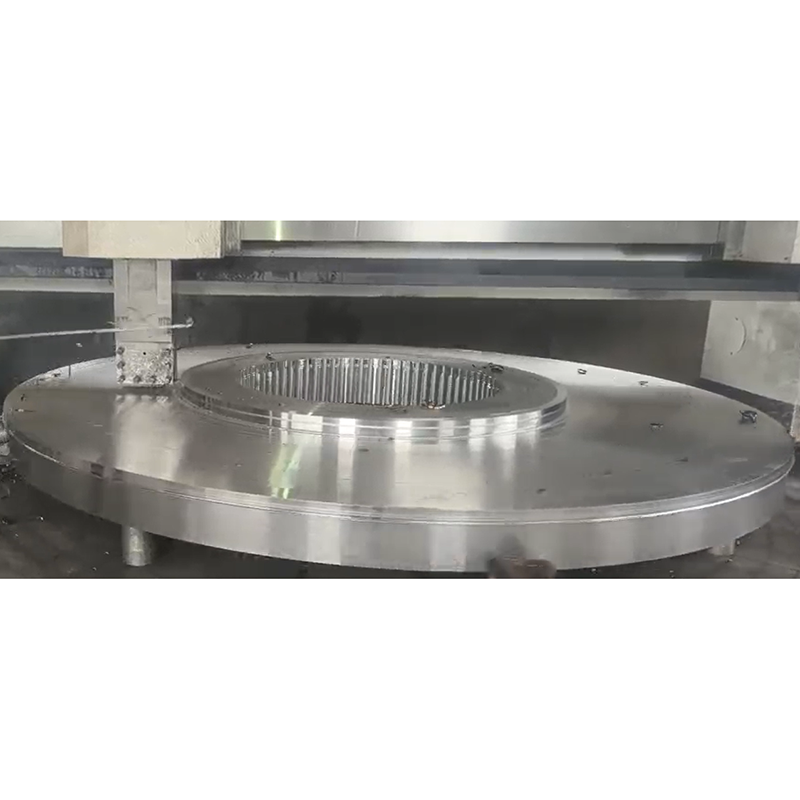

Large Forged Disk, EN 10025-2 S355J2G3+N, OD 3445*ID 1295 mm

We manufacture large forged disks from EN 10025-2 S355J2G3+N steel, offering exceptional strength and reliability. With an outside diameter of 3445 mm, inside diameter of 1295 mm, and thickness of 240 mm, these disks are available with rough or finish machining options. Ideal for heavy-duty industrial applications, they deliver outstanding performance in demanding conditions.

Tags:

• EN 10025-2 S355J2G3+N Disk
• Forged Steel Disk

Product Item: EN 10025-2 S355J2G3+N Large Forged Disk
Outside Diameter: 3445 mm
Inside Diameter: 1295 mm
Thickness: 240 mm
Delivery Condition: Rough machining or finish machining
Heat Treatment: Normalizing, Quenching + Tempering or As Required
Material: EN 10025-2 S355J2G3+N
Application: crane, trolley, transfer car, heavy duty industry etc, etc.
Forging processing: ingot-forging---heat treatment---rough machining---UT.MT---Q+T---inspection---finishing machining---UT.MT---packing
Inspection: chemical composition;UT(EN 10228.3 level 3), MT; mechanical property;dimension check.
All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out in the market.
Packing: Seaworthy wooden cases, pallet or customized packing
