Flange Insulation Gasket Kits, Type E/F, PTFE, G7, G10, G11

The Flange Insulation Gasket Kits are designed for low-pressure applications, available in Type E and Type F configurations. These kits are constructed from high-quality materials, including plain phenolic, neoprene, PTFE, G7, G10, and G11, ensuring effective insulation and preventing galvanic corrosion between dissimilar metals.

Tags:

• Insulation Gasket Kits
• Flange Insulation Kits
• Low Pressure Insulation Kits

Product Item: Flange Insulation Gasket Kits, Low Pressure Insulation Kits
Gasket Types: Type E Gasket, Type F Gasket
Materials: Plain Phenolic, Neoprene, PTFE, G-7, G-10, G-11, etc.
Range of Insulation Gasket Kits: CHG Higher Pressure Gaskets, CLG Low Pressure Gaskets, Insulation Sleeves, Washers
Insulation Gasket Materials: Nitrile, EPDM, VITON and Teflon/PTFE
We Landee provide the sets of kits or the insulation gaskets, insulation sleeves, insulation washers separately.

Features

SEALS CLG is available in both full-face (Type E) and ring style (Type F) configurations.
Depending upon the sealing element selected, the CLG is rated for most all hydrocarbon and water service applications.
Both retainer and sealing element's temperature limit should be considered together while choose the material.

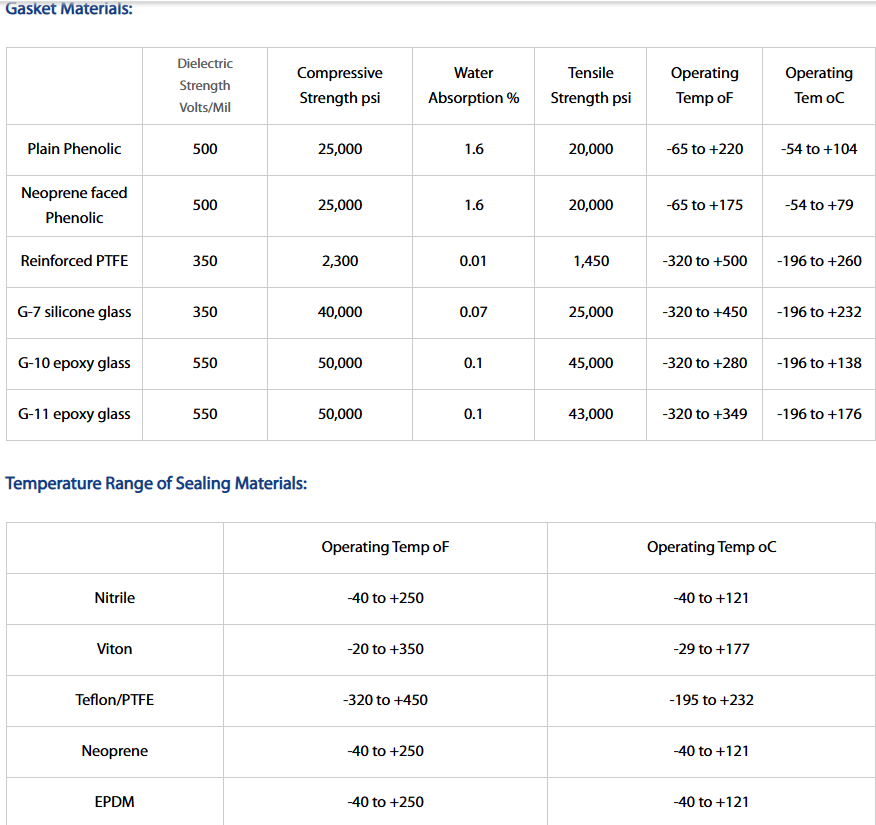

Refer to chart for sealing gasket temperature range and material compatibilities.
