FBE Coated Y Strainer, ASTM A536 65-45-12, 2-12 IN, 300 PSI

FBE Coated Y Strainer, ASTM A536 65-45-12, 2-12 IN, 300 PSI
FBE Coated Y Strainer, ASTM A536 65-45-12, 2-12 IN, 300 PSI

Key Specifications / Features

The FBE Coated Y Strainer features a ductile iron ASTM A536 Grade 65-45-12 body for strength and durability. It is equipped with an AISI 304 stainless steel screen for excellent corrosion resistance and filtration performance. Available in sizes from 2 to 12 inches (DN50-DN300) and rated for 300 PSI, this strainer is ideal for protecting pipelines from debris and contaminants. With flanged ends for secure and easy installation.
Request a quote

Detail Information

Product Item: FBE Coated Y Strainer
Body Material: ASTM A536 Grade 65-45-12
Screen Material: AISI 304
Size Range: 2-12 Inch, DN50-DN300
Working Pressure: 300 PSI (Standard), 200 PSI and 250 PSI available upon request
Connection Ends: Flanged, ASME B16.1 Class 125 LB/ASME B16.42 Class 150 LB
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating (ANSI/AWWA C550)

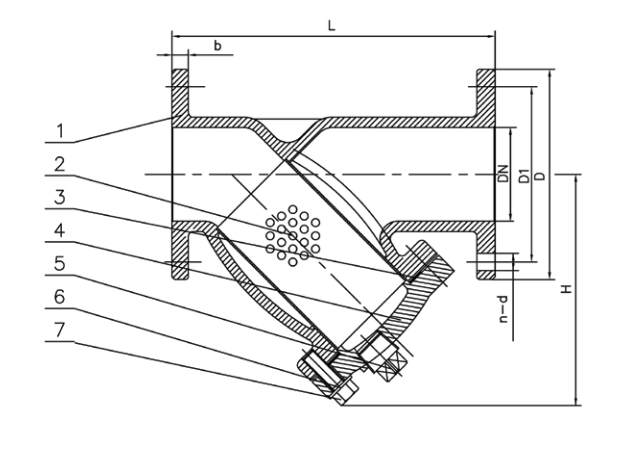

Y-strainer Structural Diagram

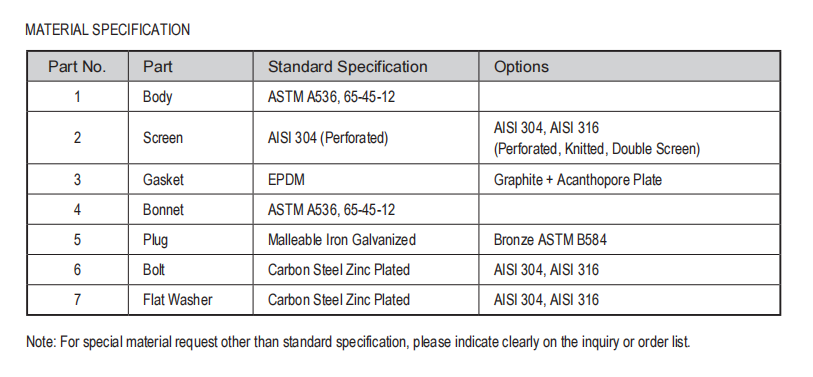

Y-strainer Material Specification

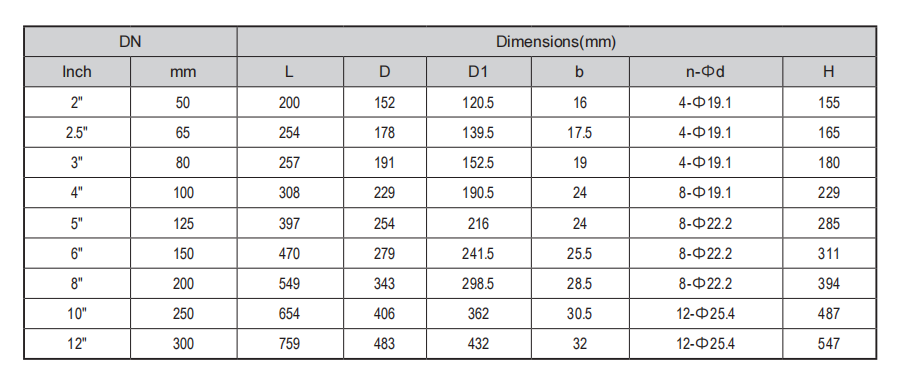

Y-strainer Dimensions
