• Ductile Iron Backwater Valve, ASTM A536 GR.65-45-12, 175 PSI
Ductile Iron Backwater Valve, ASTM A536 GR.65-45-12, 175 PSI

Key Specifications / Features

Model No.: LD-20241212-OV-01 Hits: 4

As a trusted Ductile Iron Backwater Valve Supplier, we offer valves made from ASTM A536 Grade 65-45-12, ensuring superior strength and durability. These valves are designed to withstand a working pressure of 175 PSI and feature ASTM A888 connection ends for secure and reliable installations. With a temperature range from 0°C to 80°C, they are suitable for various water and wastewater applications.
Request a quote

Detail Information


Product Item: Ductile Iron Backwater Valve
Material: Ductile Iron ASTM A536 Grade 65-45-12
Working Pressure: 175 PSI
Connection Ends: ASTM A888
Temperature Range: 0°C to 80°C
Coating: Painting

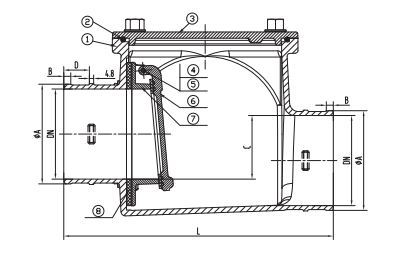

Ductile Iron Backwater Valve Design Drawing

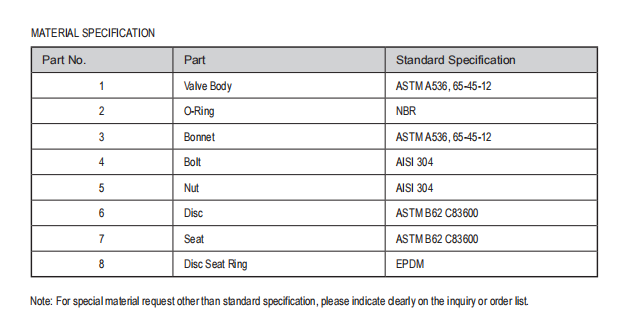

ASTM A536 Grade 65-45-12 Backwater Valve Material Specification

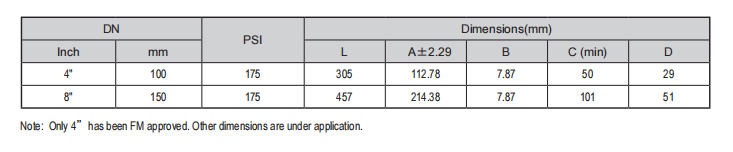

ASTM A536 Grade 65-45-12 Backwater Valve Dimensions
