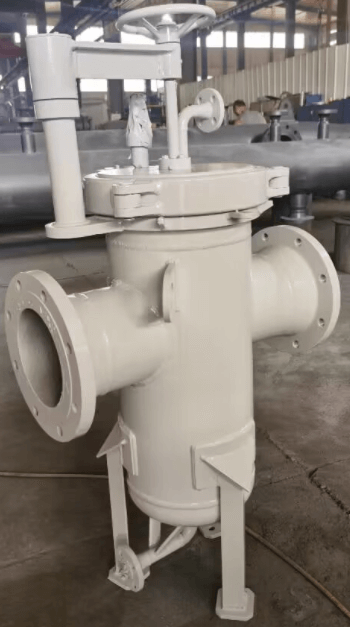

• Carbon Steel Vertical Basket Strainer, ASME SA516 Grade 70, 100 Bar
Carbon Steel Vertical Basket Strainer, ASME SA516 Grade 70, 100 Bar

Key Specifications / Features

Model No.: Hits: 35

Get a high-quality Vertical Basket Strainer Fabricator meeting ASME Sec VIII standards. Constructed with durable Carbon Steel and designed to withstand pressures up to 100 Bar. Made from ASME SA516 Grade 70, ASME SA105, ASTM A105, and ASTM A516 Gr.70 materials. Dimensions: 700362650 mm. Order now for reliable and efficient basket fabrication solutions.
Request a quote

Detail Information

KEY PRODUCT: VERTICAL BASKET Strainer, ASME Sec VIII, DIV. 1 STANDARD

1. FLUID HANDLED: HMP
2. Radiography: 100%
3. Operating Pressure: 100 Bar
4. Design Pressure: 100.2 Bar
5. Design Temperature: 0-60 Degree Celsius
6. Hydro Test Pressure: 150.3 Bar
7. Body Material: Carbon Steel (ASME SA105 OR ASME SA516 Gr.70)
8. BODY SIZE: 700*36*2650mm (ID.XWall THK X Total HGT)
9. Filter Type Manual: Basket Filter - Vertical
10. Design / Standard: Designed to ASME Sec VIII, DIV. 1
11. Stamp: Non-Stamped but with PED /CE Marking
12. Shell Flanges: ASME SA 516 GR.70
13. Quick Open Closer: YES, Band lock type
14. Inlet / Outlet Connection Type –Position
15. Inlet / Outlet Connection Size: 12 IN (300 NB) ANSI B 16.5 Class # 600.—WNRF
