AWWA C515 Gate Valve, ASTM A536 Grade 65-45-12, 2-8 IN, NRS

Key Specifications / Features

The China AWWA C515 Gate Valve is manufactured with a ductile iron ASTM A536 Grade 65-45-12 body. Available in sizes from 2 to 8 inches and rated for 300 PSI, this valve features resilient seating for a tight seal and non-rising stem operation, which makes it ideal for space-constrained installations. The valve is equipped with flanged and socket ends for secure and leak-tight connections.

Model No.: LD-20250210-GTV-01
Hits: 9
Categories: Gate Valves
Tags: AWWA C515 Gate Valve, ASTM A536 Grade 65-45-12 Gate Valve, Non Rising Stem Gate Valve

Request a quote

Detail Information

Product Item: Resilient-seated Gate Valve, NRS
Standard: AWWA C515

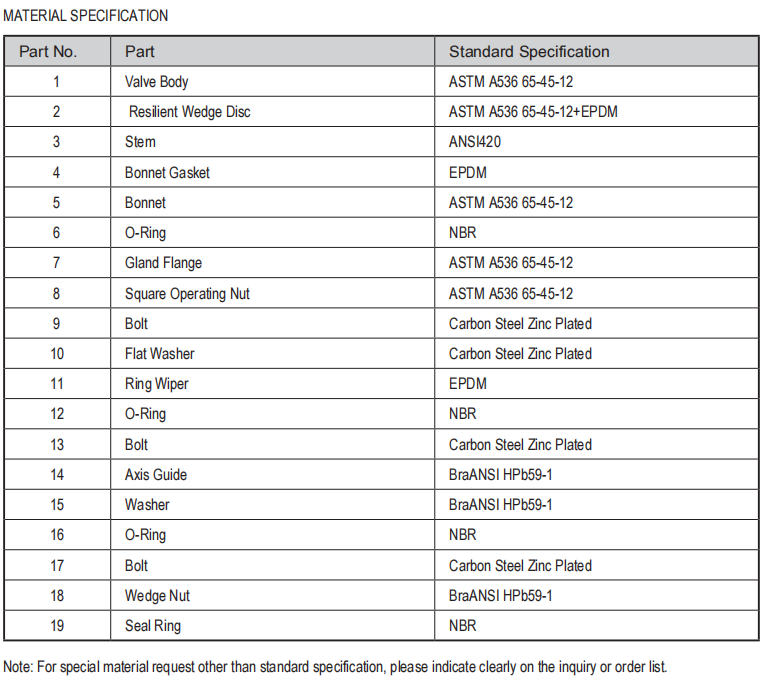

Body Material: ASTM A536 Grade 65-45-12
Size Range: 2-8 Inch, DN50-DN200
Working Pressure: 300 PSI (Standard), 200 PSI and 250 PSI available upon request
End Connection:
Flanged End: ASME B16.5 Class 125 LB
Socket End: Suitable for IPS PVC Pipes (ASTM D2672)
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating (ANSI/AWWA C550), Painting available upon request
Applications: Potable Water, Water Distribution Service & Feed Lines, Sewage Disposal, Irrigation, Fire Protection Pipe Systems
