• ASTM A995 5A Eccentric Disc Triple Offset Butterfly Valve

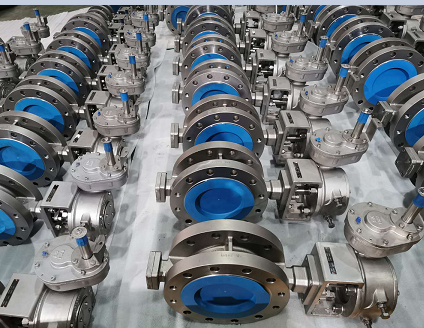

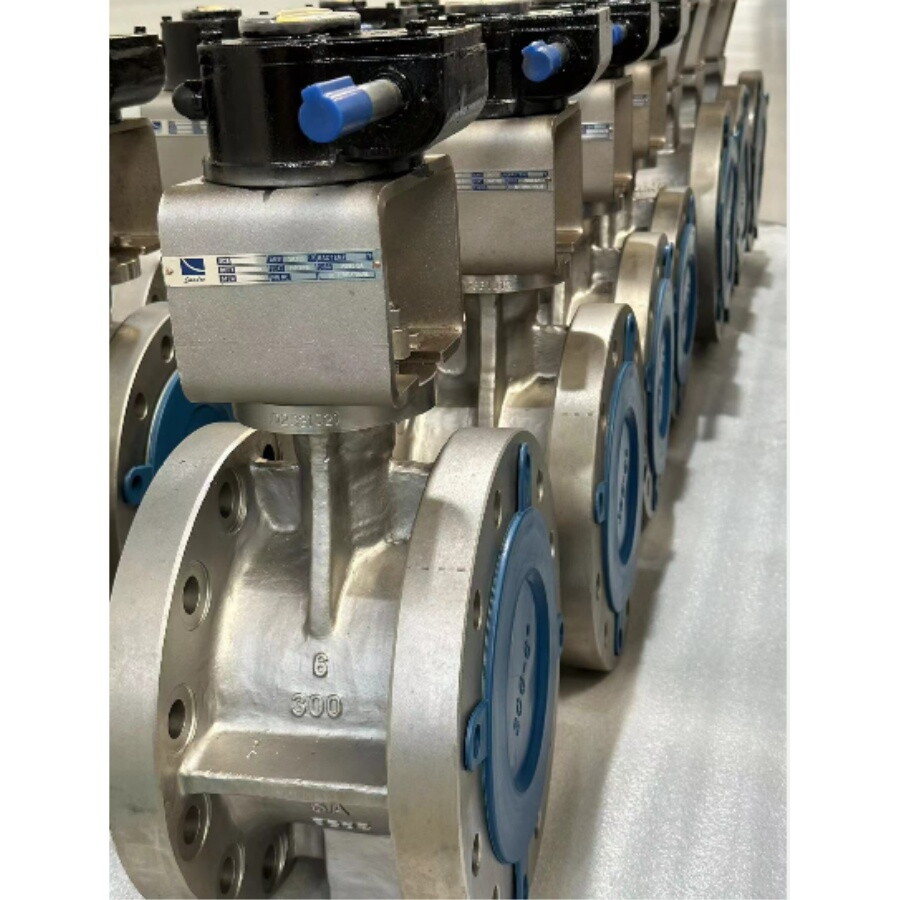

ASTM A995 5A Eccentric Disc Triple Offset Butterfly Valve

Key Specifications / Features

Model No.: Hits: 36

ASTM A995 5A Butterfly Valve Manufacturer: ASTM A995 5A Triple Offset Butterfly Valves, Eccentric Disc, API 609, 6 Inch, 8 Inch, Class 300 LB, PN50.
Request a quote

Detail Information

Eccentric Disc Triple offset Type Butterfly Valve, API 609 Standard, Short Pattern, Seat Leakage as per ISO 5208, Body & Disc Materials: ASTM A995 Gr. 5A, Shaft: A182 Gr. F53, Packing: RPTFE, Seat: HardFace, Sealing: F53 + RPTFE, Design temperature - 52 Deg. C, Service: Sea Water, 300# Calss Rating, Flanged Ends, 6" & 8"

Product Item: Butterfly Valve
Size: 6 Inch, DN150; 8 Inch, DN200
Pressure: Class 300 LB, PN50
Standard: API 609
Material: ASTM A995 5A
Shaft: ASTM A182 F53
Packing: RPTFE
Seat: Hard Face
Sealing: F53 + RPTFE
