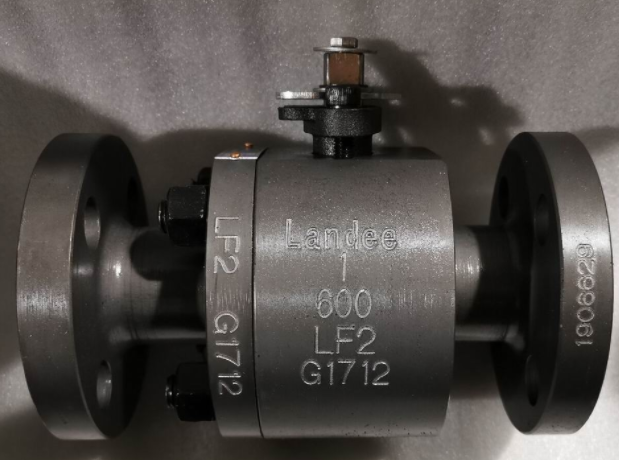

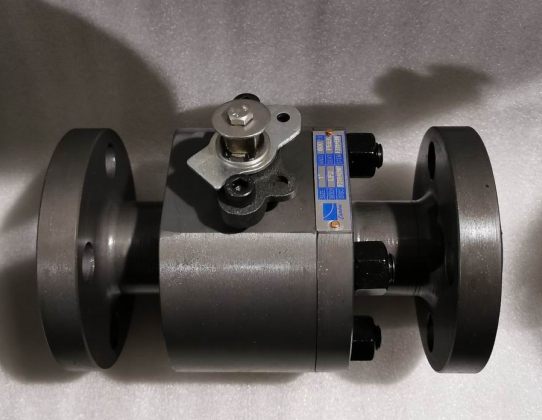

ASTM A350 LF2 Floating Ball Valve, 600 LB, API 6D, ASME B16.34

Key Specifications / Features

Explore high-quality ASTM A350 LF2 floating ball valves from a leading manufacturer, available in various sizes ranging from 1/2 inch to 3 inches, with a pressure rating of 600 LB. These valves adhere to API 6D and ASME B16.34 standard, constructed from durable carbon steel with SS 316 trim. Featuring a 2-piece split body design and flanged RF connection, they ensure reliable performance for your industrial applications.

Hits: 37
Categories: Ball Valves
Tags: ASTM A350 LF2 Ball Valve, Class 600 LB Ball Valve, API 6D Ball Valve

Request a quote

Detail Information

Product Item: Low-Temperature Carbon Steel Ball valve, Split Body 2-piece, Full Bore, Floating Ball
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/2 Inch, 2 Inch, 3 Inch
Pressure: Class 600 LB
Design code: API 6D, ASME B16.34
Body material: ASTM A350 LF2
Trim: SS 316
Seat (ring): peek + graphite
Dimensions face to face: ASME B16.10
Fire safe: API 6FA
End connection: Flanged RF
Must be ENP (ELECTROLESS NICKEL PLATING) on the Ball and the Stem.
