• ASTM A105 Welding Neck Flange, 20 Inch, 150 LB, RF

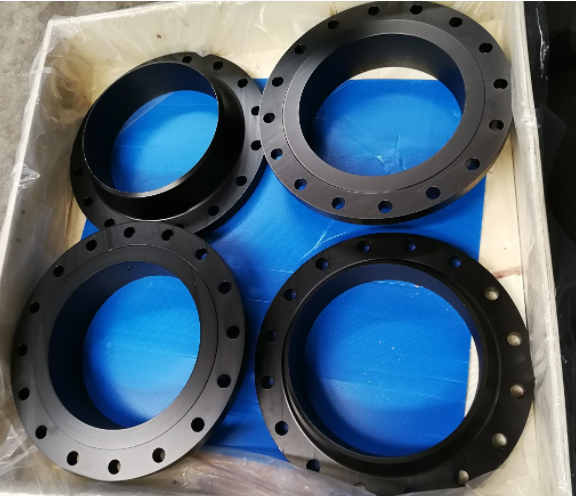

ASTM A105 Welding Neck Flange, 20 Inch, 150 LB, RF

Key Specifications / Features

Model No.: Hits: 40

Looking for high-quality FLANGES? Look no further than our selection of WELDING NECK, RAISED FACE, CLASS 150 flanges made from smooth-finished Carbon Steel. These flanges are designed and dimensioned to ANSI B 16.5 standards, with a gasket contact surface that is also smooth-finished. They have a schedule of 20 to ANSI B 36.10, and are made from ASTM A105 material that has been normalized/annealed. With a maximum carbon content of 0.25% and a maximum manganese content of 1.20%, these flanges are both durable and reliable. Plus, they come in sizes up to 20 inches, making them perfect for a variety of industrial applications.
Request a quote

Detail Information

FLANGES, WELDING NECK, RAISED FACE, CLASS 150; Carbon Steel,
Smooth Finish. Design and Dimensions to ANSI B 16.5, Gasket Contact Surface Smooth Finished. Schedule 20 To ANSI B 36.10. Material to ASTM A105, Normalized / Annealed. Max. Carbon Content 0.25 %.
Manganese Content 1.20 %, Max. Size: 20 INCH

Product Item: Welding Neck Flanges
Size: 20 Inch, DN500
Design: ANSI B16.5
Pressure: Class 150 LB, PN20
Material: Carbon Steel, ASTM A105
Wall Thickness: Schedule 20
End Connection: Raised Face
