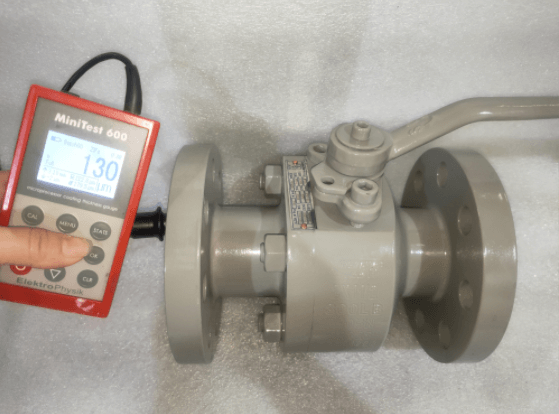

• ASTM A105 Floating Ball Valve, 2 X 1-1/2 Inch, 150 LB, RF
ASTM A105 Floating Ball Valve, 2 X 1-1/2 Inch, 150 LB, RF

Key Specifications / Features

Model No.: Hits: 137

Get high-quality lever-operated valves with split body construction, renewable seal rings, and reduced bore. Our floating ball valves feature anti-blowout stems for added safety. The body is made from ASTM A105 material, while the stem and ball are crafted from 316 stainless steel. With PTFE trim body seats and a 150# RF (ANSI B16.5) rating, these valves comply with standards such as BS 5351, BS 5146, and API 6D (FIRE SAFE). Available in a compact 2 x 1 1/2-inch size, these valves are perfect for various applications.
Request a quote

Detail Information

Split body construction, renewable seal rings, reduced bore, anti-blow-out stem,  Floating Ball. Lever operated. Body material ASTM A105. Stem, Ball material 316 S. S., Trim body Seat PTFE, 150# RF (ANSI B16.5) As per BS 5351, BS 5146, API 6D (FIRE SAFE) 2  X 1 1/2 Inch SIZE

Product Item: Floating Ball Valve
Size: 2 Inch X 1-1/2 Inch
Pressure: Class 150 LB, PN20
Body Material: ASTM A105
Standard: BS 5351, BS 5146, API 6D
Stem/Ball Material: SS 316
Trim body Seat: PTFE
End Connection: RF
