ASME SA336 Gr.F5 Forging TubeSheet for Heat Exchanger System

Explore high-quality TubeSheet for Heat Exchanger Systems made from ASME SA336 Gr. F5 Forging Steel, conforming to ASTM A336 Grade F5 standards. This DN1200 (48 Inch) TubeSheet boasts a thickness of 90 MM, ensuring effective corrosion resistance for reliable performance.

Tags:

• Pipe Sheets
• ASTM A336 Pipe Sheet
• ASME SA336 Pipe Sheet
• ASTM A336 Grade F5 Pipe Sheet
• Forging Steel Pipe Sheet
• ASME SA336 Gr. F5 Pipe Sheet
• DN1200 Pipe Sheet
• 48 Inch Pipe Sheet

Product Item: TubeSheet
Materials: ASME SA336 Gr. F5 Forging
Size: DN1200
Thickness: 90 mm

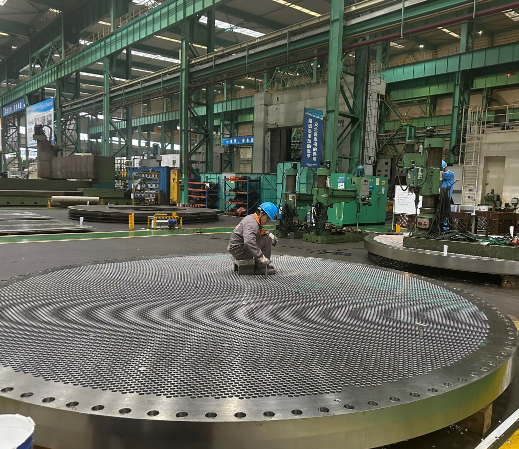

TubeSheet for Heat Exchanger system, Tubesheet is usually made from a round flat piece of plate, sheet with holes drilled to accept the tubes or pipes in an accurate location and pattern relative to one another. The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements. Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion. A tube sheet may be covered in a cladding material that serves as a corrosion barrier and insulator. Low carbon steel tube sheets can include a layer of a higher alloy metal bonded to the surface to provide more effective corrosion resistance without the expense of using the solid alloy, which means it can save a lot of costs.  With a 100% UT NDT Test, 3.2 certificates could be issued by TPI. The number of Holes could be according to the Customer's drawing
