API 5L X46 PSL2 Pipe Bend, ASME B16.9, LSAW, 90 DEG, 16 Inch

API 5L X46 PSL2 Pipe Bend, ASME B16.9, LSAW, 90 DEG, 16 Inch
API 5L X46 PSL2 Pipe Bend, ASME B16.9, LSAW, 90 DEG, 16 Inch

Key Specifications / Features

Our Carbon Steel Seamless Pipe Bend Plant specializes in producing high-quality 90-degree bends with a 5D radius, conforming to ASME B16.9 and API 5L Grade X60 standards. These bends have an 18-inch (DN450) diameter and a wall thickness of 14.27mm. They are coated with black paint for corrosion protection and feature beveled ends for seamless connections. Designed for durability and reliability, these bends are ideal for various industrial piping systems.

Detail Information

Product Item: Carbon Steel LSAW Bend, Bursting Test
Type: 90 Degree Bend
Standard: ASME B16.9
Material: API 5L X46 PSL2
Size: 16 Inch (DN400)
Wall Thickness: 14.27mm (Min Thickness: 12.95mm)
Bend Radius: 5D
Tangent Length: 300mm
Ends: Beveled End
Coating: Black Painting

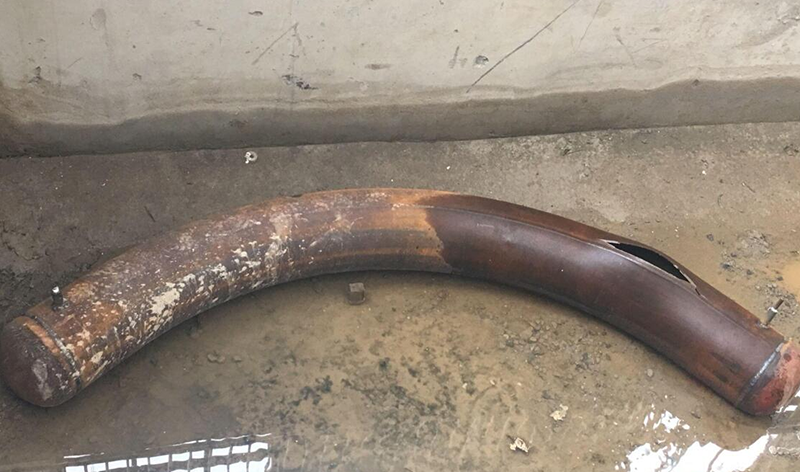

Test:
Bursting Test on Bend
Burst Pressure: 40.0 MPa

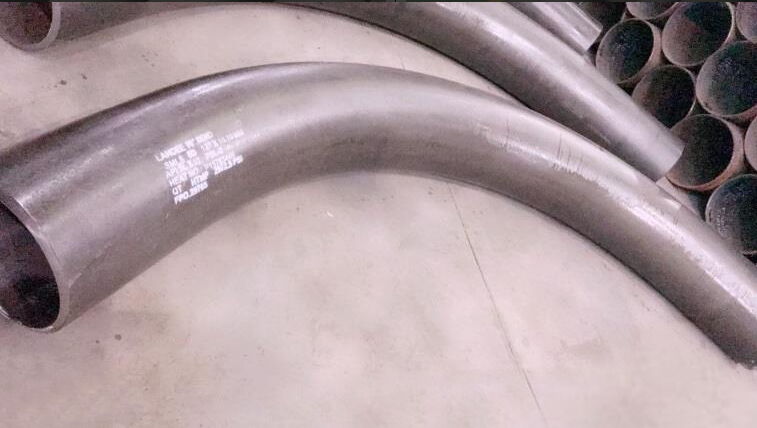

API 5L X46 PSL2 LSAW Bends

Carbon Steel LSAW Bend, Bursting Test
