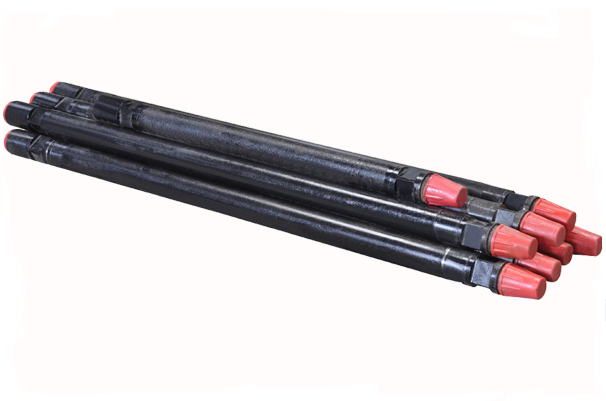

API 5DP Drill Pipe

Product Item: Drill Pipe
Standard: API 5DP
Size: Customized
Weights: Customized
Application: Oil and gas exploration and development, the construction of deep wells, horizontal wells and large-displacement wells

API 5DP drill pipe is a kind of steel pipe with screw thread in the pipe end. It is used for connecting ground rig equipment and drill grinding equipment at the bottom of drilling wells. The main purpose of drill pipes is to transport drilling mud to the drill bit. It rises up, lowers and rotates together with the drill bit. Its strength must withstand the pressure, torque, vibration and other forces caused by the drill hole. In the oil and gas exploration and refining process, the API 5DP drill pipe can be used multiple times. We provide a number of drill pipes available in various sizes and weights to meet the drilling needs of companies in the oil and gas industry.

Functions of Drill Pipe

API 5DP drill pipe is mainly applied in oil and gas exploration and development, such as in the construction of deep wells, horizontal, and large-displacement wells.

Its main functions are as follows:

Drill pipes deliver torque and drive the drill bit to drill wells.
Exert pressure that can break the rock at the bottom of the well on the drill bit.

API 5DP drill pipe transmits flushing fluid. Through the ground high-pressure slush pump or mud pump, drill mud enters into the inner hole of the drill string, flows into the bottom of the well to wash rock debris and cool down the drill bit, and passes through the annular space between the drill string outer surface and well wall (carrying rock debris), returns to the ground.
