ANSI B16.5 Flange-Olet, Flange-outlet, Nipoflange, Weldoflange

Explore a comprehensive range of Flange-Olet products, including Flange-outlet, Nipoflange, and Weldoflange in Carbon Steel, Stainless Steel, and Alloy Steel materials. Our offerings adhere to international standards such as ASME/ANSI B16.5 and EN 1092, with the flexibility to provide custom sizes for your specific needs.

Tags:

• ANSI B16.5 Flangeolets
• EN 1092 Flange-Olet
• Alloy Steel Flange-Olet
• Stainless Steel Flange-Olet
• Carbon Steel Flange-Olet
• Weldoflange
• Nipoflanges
• Flange-outlet

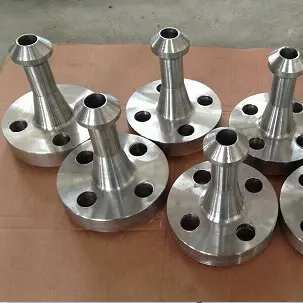

Product Item: Flange-Olet, Flange-outlet, Nipoflange, Weldoflange
Size: according to the drawing or customer size
Materials: Carbon Steel, Stainless Steel and Alloy Steel
Standard: ASME/ANSI B16.5, EN 1092
Application of Flange-olet: The flange-olet is used for a 90° branch connection from a main pipe.

Flange-Olet (Flange-outlet) is also called Nipoflange or Weldoflange. Its shape looks like a Long weld neck flange. It could be regarded as a combination of a long weld neck flange and a weldolet, or a nipolet welded with a weld neck flange. On the run pipe side, the flangeolet is designed like a weldolet. It will welded with the run pipe as a branch of the pipe. On another side, the flange-olet is a flange connection. These flange dimensions could be designed as per EN1092, ASME/ANSI B16.5 standard or other codes.
